Hyundai Palisade: Cylinder Head Assembly / Cylinder Head

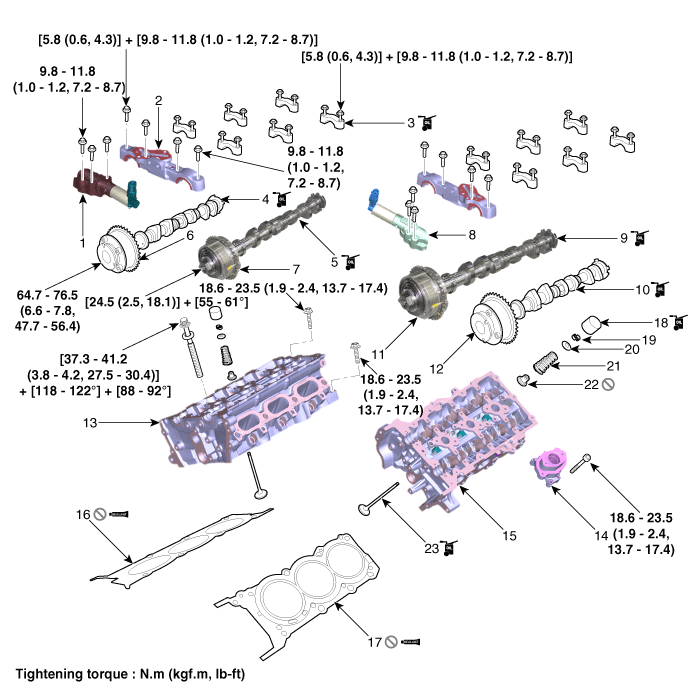

		Components and components location



		1. RH intake camshaft OCV
		2. Camshaft thrust bearing cap
		3. Camshaft bearing cap
		4. RH exhaust camshaft
		5. RH intake camshaft
		6. RH exhaust camshaft CVVT assembly
		7. RH intake camshaft CVVT assembly
		8. LH exhaust camshaft OCV
		 |
		9. LH intake camshaft
		10. LH exhaust camshaft
		11. LH intake camshaft CVVT assembly
		12. LH exhaust camshaft CVVT assembly
		13. RH cylinder head
		14. Fuel pump bracket
		15. LH cylinder head
		16. RH cylinder head gasket
		 |
		17. LH cylinder head gasket
		18. MLA
		19. Retainer lock
		20. Retainer
		21. Valve spring
		22. Valve stem seal
		23. Valve
		 |

Repair procedures





				| •  |


					Be careful not to damage the parts located under the vehicle
					(floor under cover, fuel filter, fuel tank and canister) when
					raising the vehicle using the lift.

					(Refer to General Information - "Lift and Support Points")
				 |


		 |






				| •  |


					Use fender covers to avoid damaging painted surfaces.
				 |




				| •  |


					To avoid damaging the cylinder head, wait until the engine coolant
					temperature drops below normal temperature (20°C [68°F]) before
					removing it.
				 |




				| •  |


					When handling a metal gasket, be careful not to fold the gasket
					or damage the contacting surface of the gasket.
				 |




				| •  |


					To avoid damage, unplug the wiring connectors carefully while
					holding the connector portion.
				 |


		 |






				| •  |


					Mark all wiring and hoses to avoid misconnection.
				 |




				| •  |


					Turn the crankshaft pulley so that the No. 1 piston is at top
					dead center.
				 |


		 |

	[RH Cylinder Head]

		| 1. |


			Remove the air duct.

			(Refer to Intake and Exhaust System - "Air Cleaner")
		 |


		| 2. |


			Remove the battery.

			(Refer to Engine Electrical System - "Battery")
		 |


		| 3. |


			Remove the engine cover.

			(Refer to Engine and Transaxle Assembly - "Engine Cover")
		 |


		| 4. |


			Remove the air cleaner assembly.

			(Refer to Intake and Exhaust System - "Air Cleaner")
		 |


		| 5. |


			Remove the engine room under cover.

			(Refer to Engine and Transaxle Assembly - "Engine Room Under Cover")
		 |


		| 6. |


			Drain the engine coolant.

			(Refer to Cooling System - "Coolant")
		 |


		| 7. |

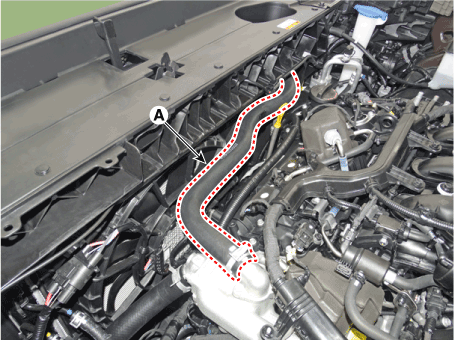

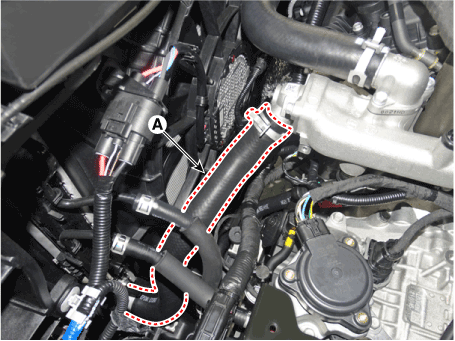

			Disconnect the radiator upper hose (A).


		 |


		| 8. |


			Disconnect the radiator lower hose (A).


		 |


		| 9. |


			Remove the surge tank.

			(Refer to Intake and Exhaust System - "Surge Tank")
		 |


		| 10. |


			Remove the intake manifold.

			(Refer to Intake and Exhaust System - "Intake Manifold")
		 |


		| 11. |


			Remove the RH exhaust manifold.

			(Refer to Intake and Exhaust System - "Exhaust Manifold")
		 |


		| 12. |


			Remove the RH cylinder head cover.

			(Refer to Cylinder Head Assembly - "Cylinder Head Cover")
		 |


		| 13. |


			Remove the timing chain.

			(Refer to Timing System - "Timing Chain")
		 |


		| 14. |


			Remove the water temperature control assembly.

			(Refer to Cooling System - "Water Temperature Control Assembly")
		 |


		| 15. |


			Remove the RH camshaft.

			(Refer to Cylinder Head Assembly - "CVVT & Camshaft")
		 |


		| 16. |


			Remove the delivery pipe.

			(Refer to Engine Control / Fuel System - "Delivery Pipe")
		 |


		| 17. |


			Remove the RH cylinder head.


				| (1) |

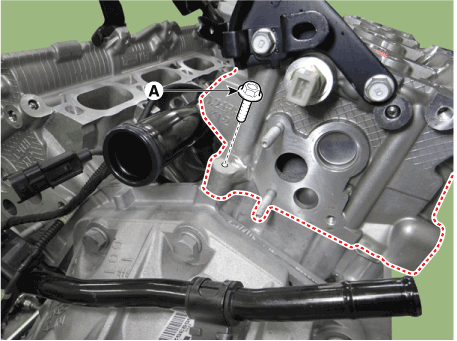

					Remove the RH cylinder head rear bolt (A).


				 |




				| (2) |

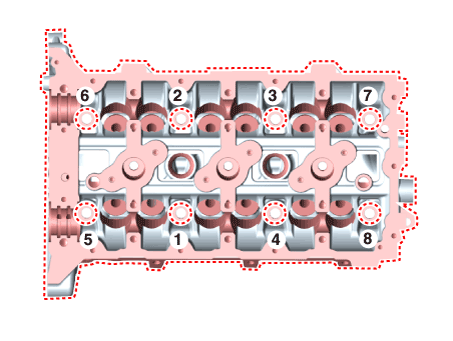

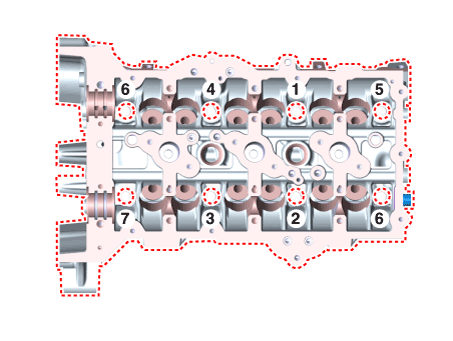

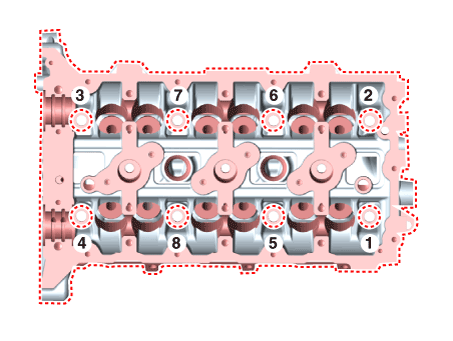

					Uniformly loosen and remove the cylinder head bolts, in several
					passes, in the sequence shown.








								|
								•  |


									Removing bolts in an incorrect order may result
									in head warpage or crack.
								 |


						 |


				 |




				| (3) |

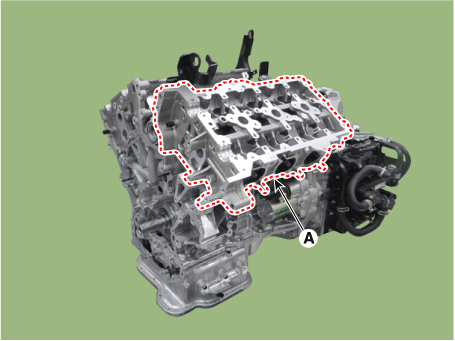

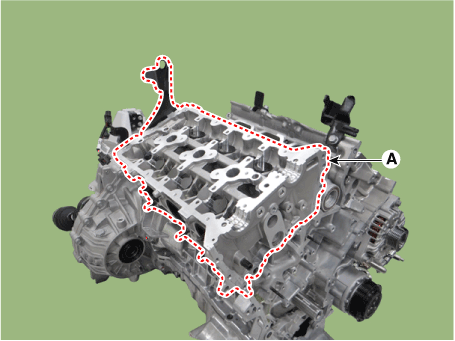

					Lift the RH cylinder head (A) from the dowels on the cylinder
					block and place the cylinder head on wooden blocks of a bench.








								|
								•  |


									Be careful not to damage the contact surfaces
									of the cylinder head and cylinder block.
								 |


						 |


				 |




				| (4) |

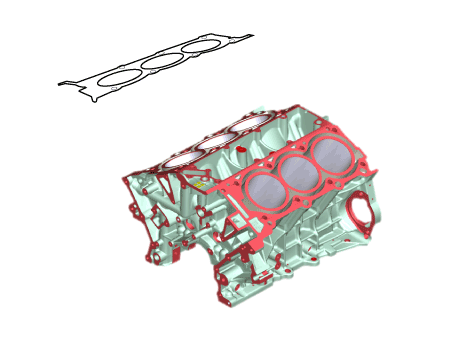

					Remove the RH cylinder head gasket.


				 |


		 |

	[LH Cylinder Head]

		| 18. |


			Remove the air duct.

			(Refer to Intake and Exhaust System - "Air Cleaner")
		 |


		| 19. |


			Remove the battery.

			(Refer to Engine Electrical System - "Battery")
		 |


		| 20. |


			Remove the engine cover.

			(Refer to Engine and Transaxle Assembly - "Engine Cover")
		 |


		| 21. |


			Remove the air cleaner assembly.

			(Refer to Intake and Exhaust System - "Air Cleaner")
		 |


		| 22. |


			Remove the engine room under cover.

			(Refer to Engine and Transaxle Assembly - "Engine Room Under Cover")
		 |


		| 23. |


			Drain the engine coolant.

			(Refer to Cooling System - "Coolant")
		 |


		| 24. |


			Disconnect the radiator upper hose (A).


		 |


		| 25. |


			Disconnect the radiator lower hose (A).


		 |


		| 26. |


			Remove the surge tank.

			(Refer to Intake and Exhaust System - "Surge Tank")
		 |


		| 27. |


			Remove the intake manifold.

			(Refer to Intake and Exhaust System - "Intake Manifold")
		 |


		| 28. |


			Remove the LH exhaust manifold.

			(Refer to Intake and Exhaust System - "Exhaust Manifold")
		 |


		| 29. |


			Remove the alternator.

			(Refer to Engine Electrical System - "Alternator")
		 |


		| 30. |


			Remove the LH cylinder head cover.

			(Refer to Cylinder Head Assembly - "Cylinder Head Cover")
		 |


		| 31. |


			Remove the timing chain.

			(Refer to Timing System - "Timing Chain")
		 |


		| 32. |


			Remove the water temperature control assembly.

			(Refer to Cooling System - "Water Temperature Control Assembly")
		 |


		| 33. |


			Remove the LH camshaft.

			(Refer to Cylinder Head Assembly - "CVVT & Camshaft")
		 |


		| 34. |


			Remove the delivery pipe.

			(Refer to Engine Control / Fuel System - "Delivery Pipe")
		 |


		| 35. |


			Remove the LH cylinder head.


				| (1) |

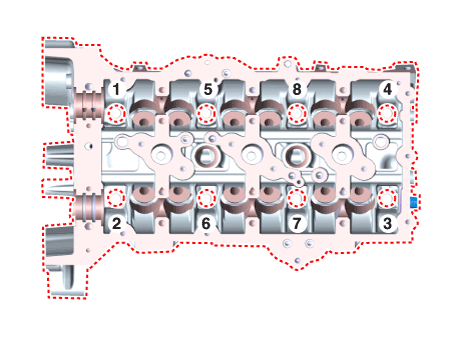

					Uniformly loosen and remove the cylinder head bolts, in several
					passes, in the sequence shown.








								|
								•  |


									Removing bolts in an incorrect order may result
									in head warpage or crack.
								 |


						 |


				 |




				| (2) |


					Lift the LH cylinder head (A) from the dowels on the cylinder
					block and place the cylinder head on wooden blocks of a bench.








								|
								•  |


									Be careful not to damage the contact surfaces
									of the cylinder head and cylinder block.
								 |


						 |


				 |




				| (3) |


					Remove the LH cylinder head gasket.


				 |


		 |






				| •  |


					Identify MLA, valves and valve springs as they are removed so
					that each item can be reinstalled in its original position.
				 |


		 |


		| 1. |

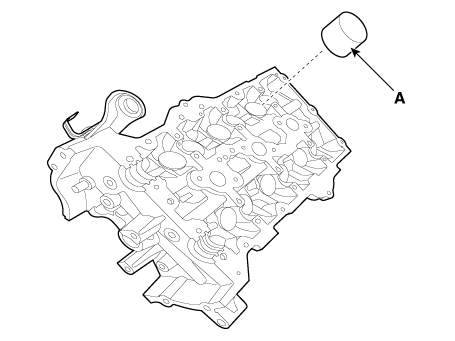

			Remove the MLAs (A).


		 |


		| 2. |


			Remove the valves.


				| (1) |

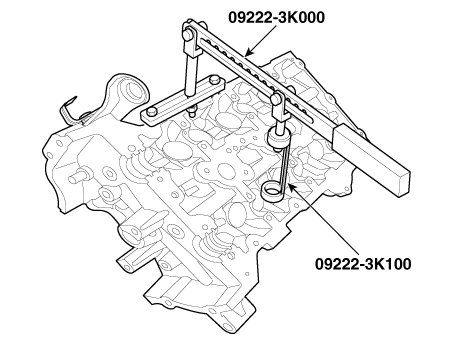

					Using the SSTs (09222-3K000, 09222-3K100), compress the valve
					spring and remove retainer lock.


				 |




				| (2) |


					Remove the spring retainer.
				 |




				| (3) |


					Remove the valve spring.
				 |





				| (5) |

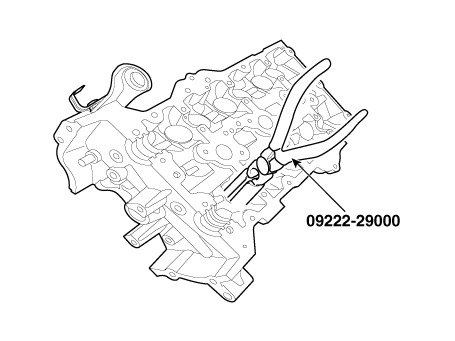

					Using the SST (09222-29000), remove the valve stem seal.


				 |








						| •
						 |


							Do not reuse old valve stem seals.
						 |


				 |


		 |

	Cylinder Head

		| 1. |

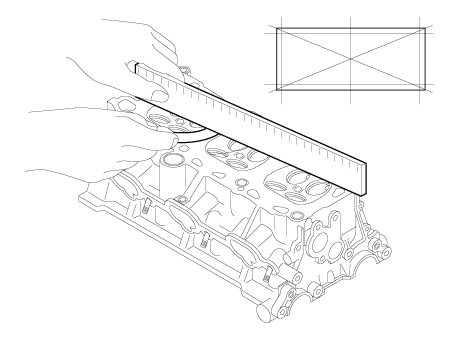

			Inspect for flatness.

			Using a precision straight edge and feeler gauge, measure the warpage
			of the surface contacting with the cylinder block


				|

					Flatness of cylinder head gasket surface

					Standard : Less than 0.05 mm (0.002 in.)

					[Less than 0.02 mm(0.0008 in.) / 150x150]

					Flatness of manifold gasket surface

					Standard : Less than 0.01 mm (0.004 in) / 110x110
				 |




		 |


		| 2. |


			Inspect for cracks.

			Check the combustion chamber, intake ports, exhaust ports and cylinder
			block surface for cracks. If cracked, replace the cylinder head.
		 |

	Valve And Valve Spring

		| 1. |


			Inspect valve stems and valve guides.


				| (1) |

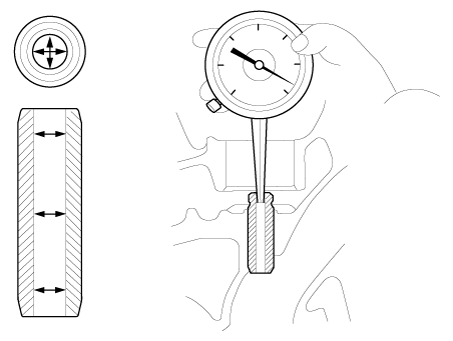

					Using a caliper gauge, measure the inside diameter of the valve
					guide.


						|

							Valve guide I.D.

							Intake / Exhaust : 5.500 - 5.512 mm (0.216 - 0.217 in.)
						 |




				 |




				| (2) |

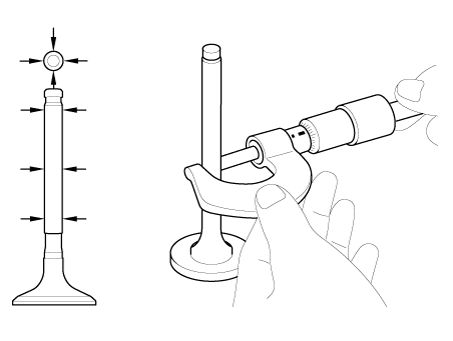

					Using a micrometer, measure the diameter of the valve stem.


						|

							Valve stem O.D.

							Intake : 5.465 - 5.480 mm (0.2151 - 0.2157 in.)

							Exhaust : 5.458 - 5.470 mm (0.2149 - 0.2153 in.)
						 |




				 |




				| (3) |


					Subtract the valve stem diameter measurement from the valve
					guide inside diameter measurement.


						|

							Valve stem-to-guide clearance

							[Standard]

							Intake : 0.020 - 0.047 mm (0.0008 - 0.0018 in.)

							Exhaust : 0.030 - 0.054 mm (0.0012 - 0.0021 in.)
						 |


				 |


		 |


		| 2. |


			Inspect valves.


				| (1) |


					Check that the valve is ground to the correct valve face angle.
				 |




				| (2) |


					Check the surface of the valve for wear.

					If the valve face is worn, replace the valve.
				 |




				| (3) |


					Check the valve head margin thickness.

					If the margin thickness is below specification, replace the
					valve.


						|

							Margin

							[Standard]

							Intake : 1.0 mm (0.0394 in.)

							Exhaust : 1.1 mm (0.0433 in.)
						 |




				 |




				| (4) |


					Check the valve length.


						|

							Length

							Intake : 105.27 mm (4.1445 in.)

							Exhaust : 105.50 mm (4.1535 in.)
						 |


				 |




				| (5) |


					Check the surface of the valve stem tip for wear.

					If the valve stem tip is worn, replace the valve.
				 |


		 |


		| 3. |


			Inspect valve seats

			Check the valve seat for evidence of overheating and improper contact
			with the valve face.

			If the valve seat is worn, replace cylinder head.

			Before reconditioning the seat, check the valve guide for wear. If the
			valve guide is worn, replace cylinder head. Recondition the valve seat
			with a valve seat grinder or cutter. The valve seat contact width should
			be within specifications and centered on the valve face.
		 |


		| 4. |


			Inspect valve springs.


				| (1) |


					Using a steel square, measure the out-of-square of the valve
					spring.
				 |




				| (2) |

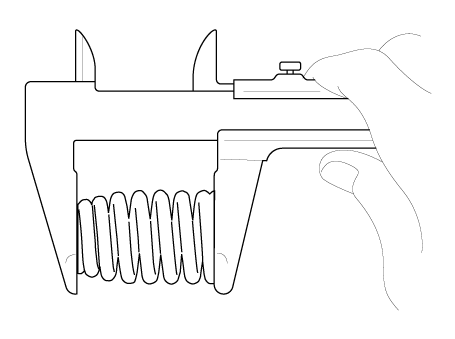

					Using vernier calipers, measure the free length of the valve
					spring.


						|

							Valve spring

							[Standard]

							Free height : 45.5 mm (1.7913 in.)

							Out-of-square : 1.5°
						 |




				 |


		 |

	MLA

		| 1. |


			Inspect MLAs.

			Using a micrometer, measure the MLA outer diameter.


				|

					MLA O.D.

					Intake/Exhaust :

					34.964 - 34.980 mm (1.3765 - 1.3771 in.)
				 |


		 |


		| 2. |


			Using a caliper gauge, measure MLA tappet bore inner diameter of cylinder
			head.


				|

					Tappet bore I.D.

					Intake/Exhaust :

					35.000 - 35.025 mm (1.3779 - 1.3789 in.)
				 |


		 |


		| 3. |


			Subtract MLA outer diameter measurement from tappet bore inner diameter
			measurement.


				|

					MLA to tappet bore clearance

					[Standard]

					Intake/Exhaust : 0.020 - 0.061 mm (0.0008 - 0.0024 in.)
				 |


		 |






				| •  |


					Thoroughly clean all parts to be assembled.
				 |




				| •  |


					Before installing the parts, apply fresh engine oil to all sliding
					and rotating surfaces.
				 |




				| •  |


					Replace oil seals with new ones.
				 |


		 |


		| 1. |


			Install the valves.


				| (1) |

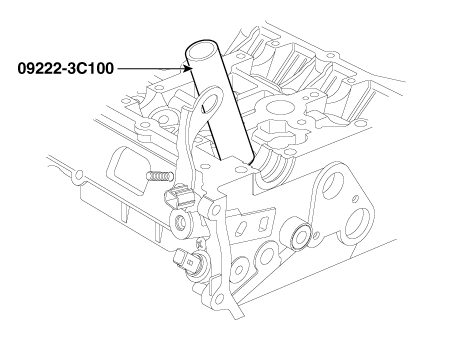

					Using the SST (09222-3C100), push in a new oil seal.






								|
								•  |


									Do not reuse old valve stem seals.
								 |




								|
								•  |


									Incorrect installation of the seal could result
									in oil leakage past the valve guides.
								 |


						 |




				 |




				| (2) |


					Install the valve, valve spring and spring retainer.






								|
								•  |


									Place valve springs so that the side coated
									with enamel faces toward the valve spring retainer
									and then install the retainer.
								 |


						 |


				 |




				| (3) |


					Using the SSTs (09222 - 3K000, 09222-3K100), compress the spring
					and install the retainer locks. After installing the valves,
					ensure that the retainer locks are in place before releasing
					the valve spring compressor.


				 |




				| (4) |


					Lightly tap the end of each valve stem two or three times with
					a soft hammer or the wooden handle of a hammer to ensure proper
					seating of the valve and retainer lock.
				 |


		 |


		| 2. |


			Install the MLAs (A).

			Check by hand that the MLA rotates smoothly.








						| •
						 |


							MLA can be reinstalled in its original position.

							However, the valve lash clearances must be rechecked
							and adjusted accordingly before the cylinder head is
							installed onto the cylinder block.

							Refer to General information in EM section for Valve
							Clearance checking and adjustment procedure.
						 |


				 |


		 |






				| •  |


					Thoroughly clean all parts to be assembled.
				 |




				| •  |


					Always use a new head and manifold gasket.
				 |




				| •  |


					Always use new cylinder head bolts. Cylinder head bolts are
					torque-to-yield bolts designed to be permanently elongated beyond
					the state of elasticity when torqued, so if the bolts are removed
					and reused, it may cause the bolts to break or fail tomaintain
					clamping force.
				 |




				| •  |


					The cylinder head gasket is a metal gasket. Be careful not to
					bend it.
				 |




				| •  |


					Rotate the crankshaft, and set the No.1 piston at TDC.
				 |


		 |

	[RH Cylinder Head]

		| 1. |


			Install the cylinder RH head.


				| a. |


					The sealant locations on cylinder head and cylinder block must
					be free of engine oil and ETC.
				 |




				| b. |

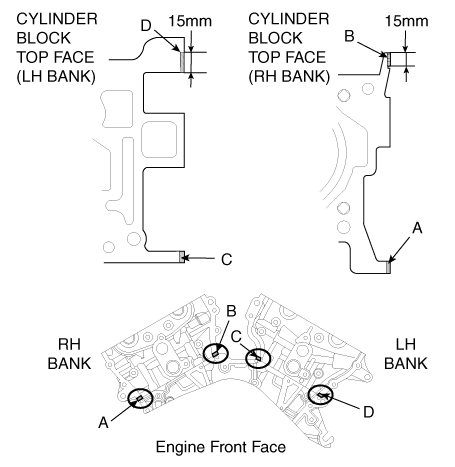

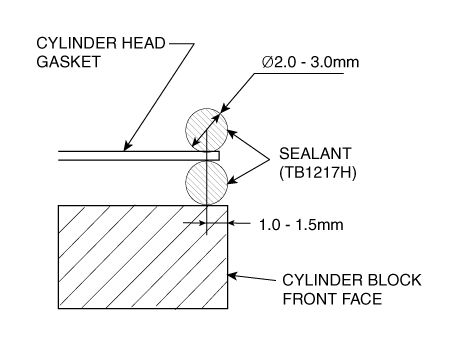

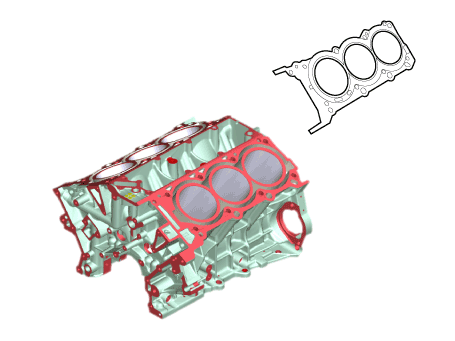

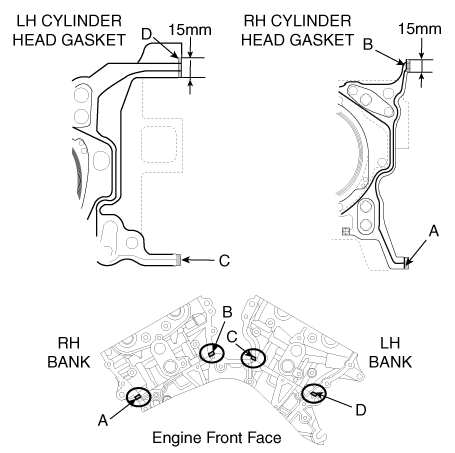

					Apply TB 1217H sealant on cylinder block top face before assembling
					cylinder head gaskets.

					Assemble the part within 5 minutes of applying sealant.








								|
								•  |


									Apply sealant by referring to the following
									illustration.
								 |


						 |




						|

							Bead width :

							2.0 - 3.0 mm (0.078 - 0.118 in.)

							Sealant locations :

							1.0 - 1.5 mm (0.039 - 0.059 in.) from block surface

							Recommended sealant : TB 1217H Liquid sealant
						 |




				 |




				| c. |


					Apply TB 1217H sealant on cylinder head gaskets after assembling
					cylinder head gaskets on cylinder block.

					Assemble the part within 5 minutes of applying sealant.










								|
								•  |

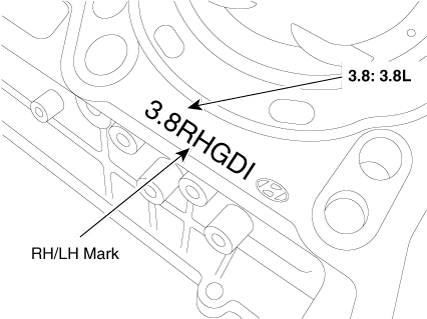

									Be fully aware of the installation direction.
								 |


						 |




				 |




				| d. |


					Install the RH cylinder head (A).






								|
								•  |


									Remove the extruded sealant after assembling
									cylinder heads.
								 |


						 |




				 |


		 |


		| 2. |


			Install the RH cylinder head bolts.


				| (1) |


					Do not apply engine oil on the threads and under the heads of
					the cylinder head bolts.
				 |




				| (2) |


					Install and tighten the cylinder head bolts and plate washers,
					in several passes, in the sequence shown.






								|
								•  |


									Always use new cylinder head bolts. Cylinder
									head bolts are torque-to-yield bolts designed
									to be permanently elongated beyond the state
									of elasticity when torqued, so if the bolts
									are removed and reused, it may cause the bolts
									to break or fail tomaintain clamping force.
								 |


						 |




						|

							Tightening torque

							Head bolt :

							37.3 - 41.2 N.m (3.8 - 4.2 kgf.m, 27.5 - 30.4 lb.ft)
							+ (118 - 122°) + (88 - 92°)

							Bolt (A) :

							18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb.ft)
						 |






				 |


		 |


		| 3. |


			Install the remaining parts in the reverse order of removal.







						| •
						 |


							Clean the battery posts and cable terminals with sandpaper.
							Assemble and then apply grease to prevent corrosion.

						 |




						| •
						 |


							Inspect for fuel leakage.
						 |




						| –
						 |


							After assembling the fuel line, turn on the ignition
							switch (without operating the starter) so that the fuel
							pump runs for approximately two seconds and fuel line
							pressurizes.
						 |




						| –
						 |


							Repeat this operation two to three times, and then check
							for fuel leakage at any point on the fuel lines.
						 |




						| •
						 |


							Refill radiator and reservoir tank with engine coolant.

						 |




						| •
						 |


							Bleed air from the cooling system.
						 |




						| –
						 |


							Start engine and let it run until it warms up (until
							the radiator fan operates 3 to 4 times).
						 |




						| –
						 |


							Turn off the engine and let it cool down. Check the
							level in the radiator, and add coolant if needed. This
							will allow trapped air to be released from the cooling
							system.
						 |




						| –
						 |


							Put radiator cap on tightly, then run the engine again
							and check for leaks.
						 |


				 |


		 |

	[LH Cylinder Head]

		| 4. |


			Install the cylinder LH head.


				| a. |


					The sealant locations on cylinder head and cylinder block must
					be free of engine oil and ETC.
				 |




				| b. |


					Apply TB 1217H sealant on cylinder block top face before assembling
					cylinder head gaskets.

					Assemble the part within 5 minutes of applying sealant.








								|
								•  |


									Apply sealant by referring to the following
									illustration.
								 |


						 |




						|

							Bead width :

							2.0 - 3.0 mm (0.078 - 0.118 in.)

							Sealant locations :

							1.0 - 1.5 mm (0.039 - 0.059 in.) from block surface

							Recommended sealant : TB 1217H (Hyundai Gray RTV) Liquid
							sealant
						 |




				 |




				| c. |


					Apply TB 1217H sealant on cylinder head gaskets after assembling
					cylinder head gaskets on cylinder block.

					Assemble the part within 5 minutes of applying sealant.










								|
								•  |


									Be fully aware of the installation direction.
								 |


						 |




				 |




				| d. |


					Install the LH cylinder head (A).






								|
								•  |


									Remove the extruded sealant after assembling
									cylinder heads.
								 |


						 |




				 |


		 |


		| 5. |


			Install the LH cylinder head bolts.


				| (1) |


					Do not apply engine oil on the threads and under the heads of
					the cylinder head bolts.
				 |




				| (2) |


					Install and tighten the cylinder head bolts and plate washers,
					in several passes, in the sequence shown.






								|
								•  |


									Always use new cylinder head bolts. Cylinder
									head bolts are torque-to-yield bolts designed
									to be permanently elongated beyond the state
									of elasticity when torqued, so if the bolts
									are removed and reused, it may cause the bolts
									to break or fail tomaintain clamping force.
								 |


						 |




						|

							Tightening torque

							Head bolt :

							37.3 - 41.2 N.m (3.8 - 4.2 kgf.m, 27.5 - 30.4 lb.ft)
							+ (118 - 122°) + (88 - 92°)
						 |




				 |


		 |


		| 6. |


			Install the remaining parts in the reverse order of removal.







						| •
						 |


							Clean the battery posts and cable terminals with sandpaper.
							Assemble and then apply grease to prevent corrosion.

						 |




						| •
						 |


							Inspect for fuel leakage.
						 |




						| –
						 |


							After assembling the fuel line, turn on the ignition
							switch (without operating the starter) so that the fuel
							pump runs for approximately two seconds and fuel line
							pressurizes.
						 |




						| –
						 |


							Repeat this operation two to three times, and then check
							for fuel leakage at any point on the fuel lines.
						 |




						| •
						 |


							Refill radiator and reservoir tank with engine coolant.

						 |




						| •
						 |


							Bleed air from the cooling system.
						 |




						| –
						 |


							Start engine and let it run until it warms up (until
							the radiator fan operates 3 to 4 times).
						 |




						| –
						 |


							Turn off the engine and let it cool down. Check the
							level in the radiator, and add coolant if needed. This
							will allow trapped air to be released from the cooling
							system.
						 |




						| –
						 |


							Put radiator cap on tightly, then run the engine again
							and check for leaks.
						 |


				 |


		 |

   Components and components location

		Components



		1. RH exhaust CVVT
		2. RH intake CVVT

		3. LH intake CVVT
		4. LH exhaust CVVT


Repair procedures

		Removal














				•


					Be careful not to damage the parts located under the vehicle
					(floor under cover, fuel filter, fuel tank and canister) when
					raising the vehicle using the lift...


   Other information:
   The front seat can be adjusted by
using the levers located on the outside
of the seat cushion. Before driving,
adjust the seat to the proper
position so that you can easily control
the steering wheel, foot pedals
and controls on the instrument
panel...

   Repair procedures

		Inspection


		1.


			Disconnect the negative (-) battery terminal.



		2.


			Open the sunglass case cover from the overhead console then remove screws
			(2EA).





		3...





		Categories



The SRS consists of the following
components:
1. Driver's front air bag module

2. Passenger's front air bag module

3. Side air bag modules

4. Curtain air bag modules

5. Retractor pre-tensioner

6. Air bag warning light

7. SRS control module (SRSCM)/
Rollover sensor

8. Front impact sensors

9. Side impact sensors

10.Side pressure sensors

11. Occupant classification system

12. Driver’s knee airbag module
read more
