Hyundai Palisade: Interior Trim / Cowl Side Trim

Hyundai Palisade (LX2) 2020-2025 Service Manual / Body (Interior and Exterior) / Interior Trim / Cowl Side Trim

Components and components location

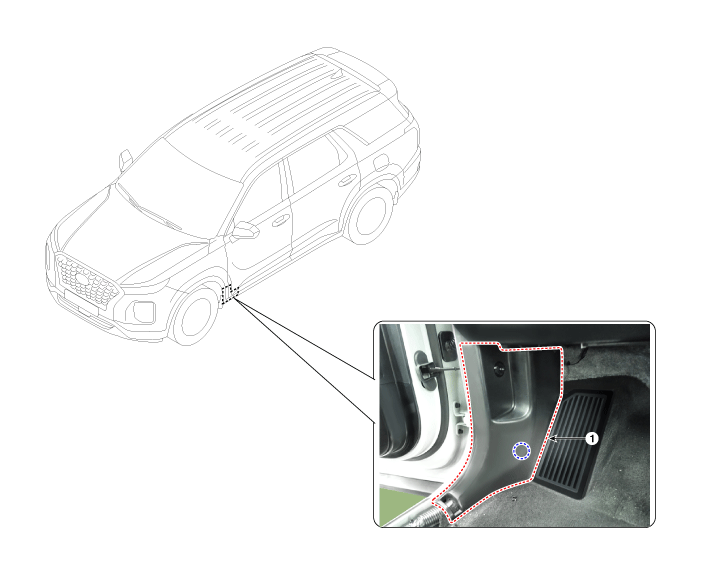

Component Location

Hyundai Palisade. Components and components location

1. Cowl side trim

Repair procedures
Replacement
Hyundai Palisade. Repair procedures
•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.
Hyundai Palisade. Repair procedures
•
Take care not to bend or scratch the trim and panels.
1.
Remove the front door body side weatherstrip.
2.
Remove the front door scuff trim.
(Refer to Interior Trim - "Door Scuff Trim")
3.
Remove the hood latch release handle.
(Refer to Hood - "Hood Latch Release Handle")
4.

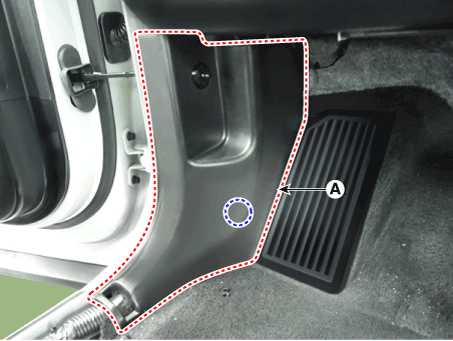

Using a flat-tip screwdriver or remover, remove the cowl side trim (A).

Hyundai Palisade. Repair procedures
5.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
•
Replace any damaged clips (or pin-type retainers).
