Hyundai Palisade (LX2): Panorama Sunroof / Components and components location
| Component Location |

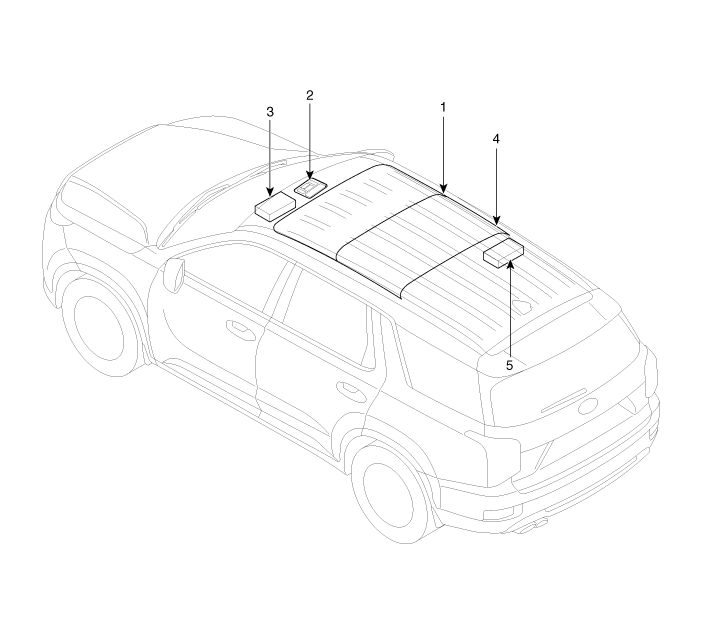

| 1. Panorama sunroof 2. Panorama sunroof switch 3. Panorama sunroof motor & controller |
4. Roller blind 5. Roller blind motor |
Circuit Diagram Sunroof Roller blind Connector Pin Information Sunroof No Wire harness connector Panorama motor 1 Ground Ground 2 Open switch Open switch (SIG A) 3 ICU Enable ICU Enable 4 Tilt up switch Tilt up switch 5 Close switch LIN Bus 6 Battery (+) Battery (+) 7 Open alarm switch Open alarm switch 8 Vehicle speed Vehicle speed 9 - Config pin 10 - Close switch (SIG B) Roller blind No Wire harness connector Panorama motor 1 Ground Ground 2 Open switch Open switch (SIG A) 3 ICU Enable ICU Enable 4 - - 5 Close switch LIN Bus 6 Battery (+) Battery (+) 7 - - 8 - - 9 - Config pin 10 - Close switch (SIG B)
Other information:
Hyundai Palisade (LX2) 2020-2026 Service Manual: Rear Heater Core
Repair procedures Replacement 1. Remove the rear heater & A/C unit. (Refer to Rear Heater - "Rear Heater Unit") 2. Loosen the mounting screws and remove the rear heater core cover (A).
Hyundai Palisade (LX2) 2020-2026 Service Manual: Repair procedures
Variant Coding When you need variant coding: – Replace Front View Camera with a new one ※ EOL Variant Coding and calibration required for new replacement Front View Camera Variant Coding
