Hyundai Palisade (LX2): ESP(Electronic Stability Program) System / Components and components location

Hyundai Palisade (LX2) 2020-2026 Service Manual / Brake System / ESP(Electronic Stability Program) System / Components and components location

Components

Hyundai Palisade. Components and components location

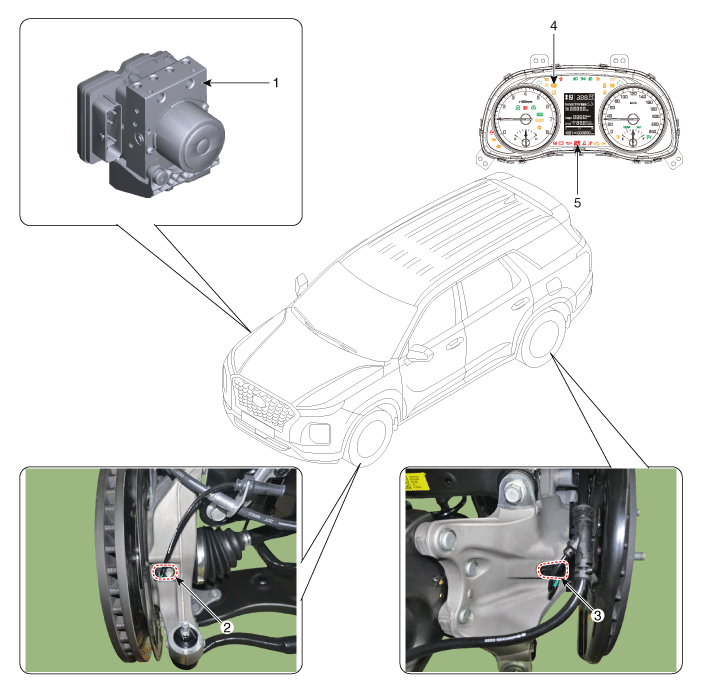

1. ABS control module (HECU)
2. Front wheel speed sensor
3. Rear wheel speed sensor
 4. ABS warning lamp
5. Parking brake/ EBD warning lamp

    Description of ESP ESP recognizes critical driving conditions, such as panic reactions in dangerous situations, and stabilizes the vehicle by wheel-individual braking and engine control intervention.
