Components Location

Hyundai Palisade. Components and components location

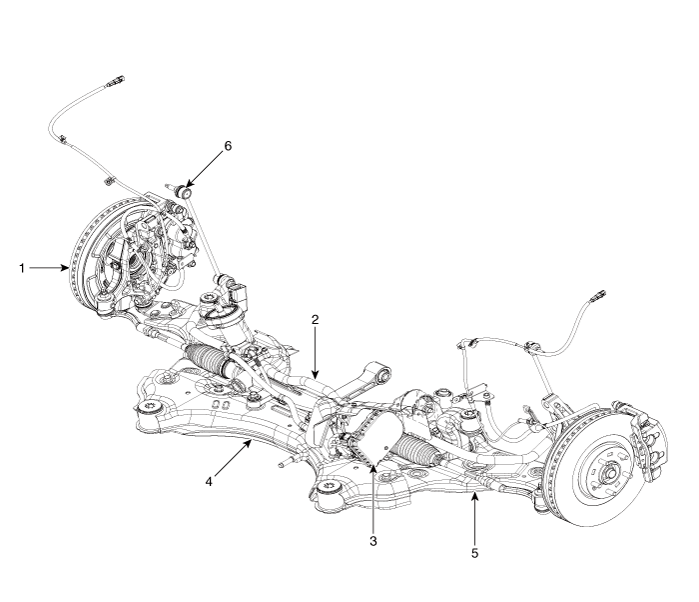

1. Front axle assembly
2. Stabilizer bar
3. Steering gearbox
 4. Sub frame
5. Front lower arm
6. Stabilizer link

    Components and components location Components 1. Strut assembly 2. Spring lower pad 3. Dust cover 4. Coil spring 5.
