Hyundai Palisade (LX2): Head Up Display System / Components and components location

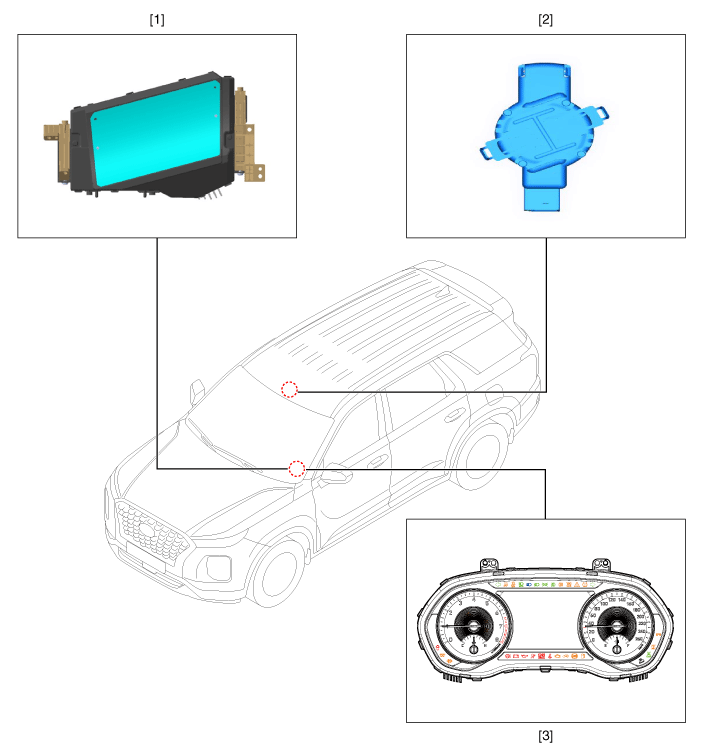

| Components Location |
| 1. Head Up Display (HUD) 2. Rain(Light) sensor |
3. Cluster (User setting menu
On/Off) |
Description 1. System operation HUD system displays various information on the windshield glass which minimizes the driver’s eye movement to enhance safety and convenience.
Other information:
Hyundai Palisade (LX2) 2020-2026 Service Manual: Schematic diagrams
Trouble Symptom Charts Component Parts and Function Outline Component part Function Cruise Control Switch Input the set speed and distance to the SCC ECU. Instrument Cluster Display various information inputted from SCC.
Hyundai Palisade (LX2) 2020-2026 Service Manual: Schematic diagrams
System Block Diagram Component Parts And Function Outline Component part Function Vehicle-speed sensor, ESP/ABS Control Module Converts vehicle speed to pulse. ECM Receives signals from sensor and control switches.
