Hyundai Palisade: Blower / Blower Motor

Hyundai Palisade (LX2) 2020-2024 Service Manual / Heating,Ventilation And Air Conditioning / Blower / Blower Motor

Repair procedures
Inspection
1.

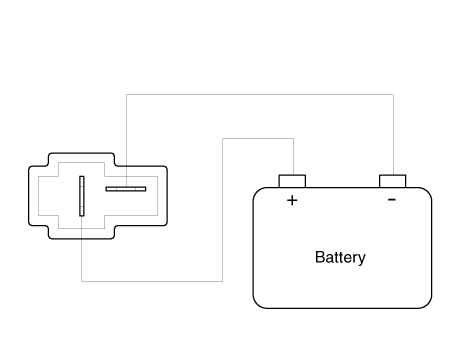

Connect the battery voltage and check the blower motor rotation.

Hyundai Palisade. Repair procedures

2.
If the blower motor does not operate well, substitute with a known-good blower motor and check for proper operation.
3.
Replace the blower motor if it is proved that there is a problem with it.
Replacement
1.
Disconnect the negative (-) battery terminal.
2.

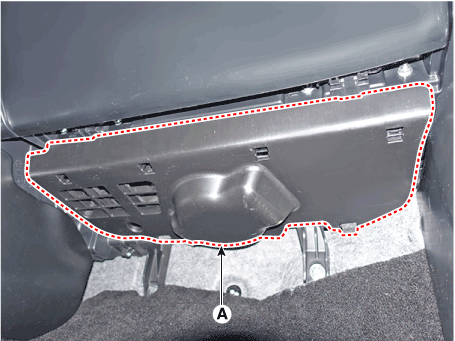

Remove the passenger side crash pad under cover (A).

Hyundai Palisade. Repair procedures

3.

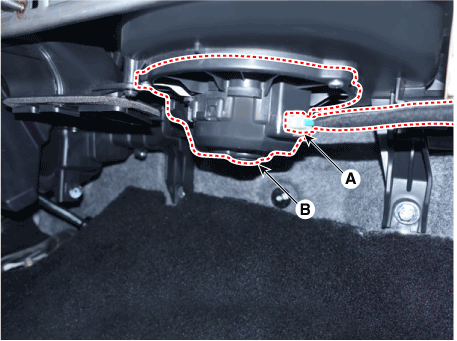

Disconnect the blower motor connector (A) and then remove the blower motor (B) after loosening the screws.

Hyundai Palisade. Repair procedures

4.
Install in the reverse order of removal.
