Hyundai Palisade: Charging System / Battery
Specifications
Item
|
Specification
|
Model type
|
AGM80L-BCI
|
Capacity [20HR/5HR] (AH)
|
80/64
|
Cold Cranking Amperage (A)
|
800 (SAE) / 640 (EN)
|
Reserve Capacity (Min)
|
155
|
Item
|
Specification
|
Capacity [20HR / 5HR] (AH)
|
68 / 54
|
Cold Cranking Amperage (A)
|
600 (SAE / EN)
|
Reserve Capacity (Min)
|
113
|
Item
|
Specification
|
Capacity [20HR / 5HR] (AH)
|
80 / 64
|
Cold Cranking Amperage (A)
|
660 (SAE / EN)
|
Reserve Capacity (Min)
|
145
|
Item
|
Specification
|
Capacity [20HR / 5HR] (AH)
|
90 / 72
|
Cold Cranking Amperage (A)
|
740 (SAE) / 740 (EN)
|
Reserve Capacity (Min)
|
170
|
Item
|
Specification
|
Capacity [20HR / 5HR] (AH)
|
68 / 54
|
Cold Cranking Amperage (A)
|
600 (SAE / EN)
|
Reserve Capacity (Min)
|
113
|
Item
|
Specification
|
Capacity [20HR / 5HR] (AH)
|
80 / 64
|
Cold Cranking Amperage (A)
|
660 (SAE / EN)
|
Reserve Capacity (Min)
|
145
|
Item
|
Specification
|
Capacity [20HR / 5HR] (AH)
|
90 / 72
|
Cold Cranking Amperage (A)
|
740 (SAE) / 740 (EN)
|
Reserve Capacity (Min)
|
170
|
• |

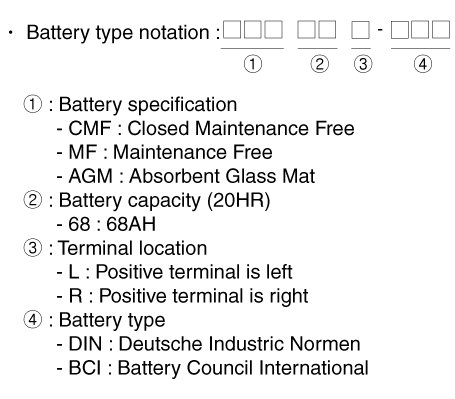

Model type description
![Hyundai Palisade. Specifications](images/battery-467/390/hyundai_palisade__specifications_730.gif)
|
• |
Cold Cranking Ampere (CCA) : A rating used in the battery industry
to define a battery's ability to start an engine in cold temperatures.
|
– |
The rating is the number of amps a new, fully charged battery
can deliver at -18 °C(-0.4 °F) for 30 seconds, while maintaining
a voltage of at least 7.2 volts for a 12 volt battery.
|
– |
The higher the CCA rating, the greater the starting power of
the battery.
|
• |
RESERVE CAPACITY (RC) : A battery industry rating, defining
a battery's ability to power a vehicle with an inoperative alternator
or fan belt.
|
– |
The rating is the number of minutes a battery at 26.7 °C(80
°F) can be discharged at 25 amps and maintain a voltage of 10.5
volts for a 12 volt battery.
|
– |
The higher the reserve rating, the longer your vehicle can operate
should your alternator or fan belt fail.
|
|
BCI Type
Capacity
(5HR/20HR)
|
Length
|
Width
|
Height
|
Total Height
|
L (mm)
|
W (mm)
|
T (mm)
|
TH (mm)
|
28/35
|
188 - 192
|
126 - 130
|
198 - 202
|
218 - 222
|
32/40
|
194 - 198
|
133 - 137
|
199 - 203
|
223 - 227
|
36/45
|
203 - 207
|
173 - 177
|
200 - 204
|
221 - 225
|
44/55
|
213 - 217
|
173 - 177
|
198 - 202
|
218 - 222
|
48/60
|
228 - 232
|
173 - 177
|
200 - 204
|
221 - 225
|
54/68
|
258 - 262
|
173 - 177
|
198 - 202
|
220 - 224
|
56/70
|
258 - 262
|
173 - 177
|
198 - 202
|
223 - 227
|
64/80
|
274 - 278
|
170 - 174
|
198 - 202
|
221 - 225
|
70/88
|
349 - 353
|
172 - 176
|
186 - 200
|
183 - 187
|
72/90
|
300 - 304
|
170 - 174
|
200 - 204
|
221 - 225
|
76/95
|
294 - 298
|
172 - 176
|
198 - 202
|
220 - 224
|
80/100
|
326 - 330
|
170 - 174
|
203 - 207
|
225 - 229
|

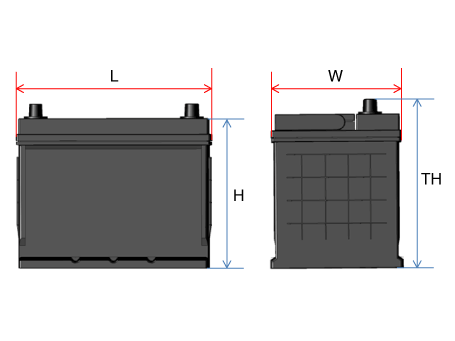

![Hyundai Palisade. Specifications](images/battery-467/390/hyundai_palisade__specifications_732.gif)
DIN Type
Capacity
(5HR/20HR)
|
Length
|
Width
|
Height
|
Total Height
|
L (mm)
|
W (mm)
|
T (mm)
|
TH (mm)
|
36/45
|
205 - 207
|
173 - 175
|
164 - 168
|
188 - 190
|
48/60
|
205 - 207
|
173 - 175
|
164 - 168
|
188 - 190
|
54/68
|
205 - 207
|
173 - 175
|
164 - 168
|
188 - 190
|
64/80
|
205 - 207
|
173 - 175
|
164 - 168
|
188 - 190
|
72/90
|
205 - 207
|
173 - 175
|
164 - 168
|
188 - 190
|
80/100
|
205 - 207
|
173 - 175
|
164 - 168
|
188 - 190
|
88/110
|
205 - 207
|
173 - 175
|
164 - 168
|
188 - 190
|
AGM DIN Type
Capacity
(5HR/20HR)
|
Length
|
Width
|
Height
|
Total Height
|
L (mm)
|
W (mm)
|
T (mm)
|
TH (mm)
|
40/50
|
205 - 207
|
173 - 175
|
164 - 168
|
188 - 190
|
48/60
|
227 - 229
|
173 - 175
|
164 - 168
|
188 - 190
|
56/70
|
276 - 278
|
173 - 175
|
164 - 168
|
188 - 190
|
64/80
|
312 - 314
|
173 - 175
|
164 - 168
|
188 - 190
|
72/90
|
351 - 353
|
173 - 175
|
164 - 168
|
188 - 190
|
84/105
|
392 - 394
|
173 - 175
|
164 - 168
|
188 - 190
|
![Hyundai Palisade. Specifications](images/battery-467/390/hyundai_palisade__specifications_733.gif)
|
Description and operation
1. |
The CMF(Closed Maintenance Free) battery is, as the name implies, totally
maintenance free and has no removable battery cell caps.
|
2. |
The CMF(Closed Maintenance Free) battery does not require water replenishment
for the repair.
|
3. |
The battery is completely sealed, except for small vent holes in the
cover.
|

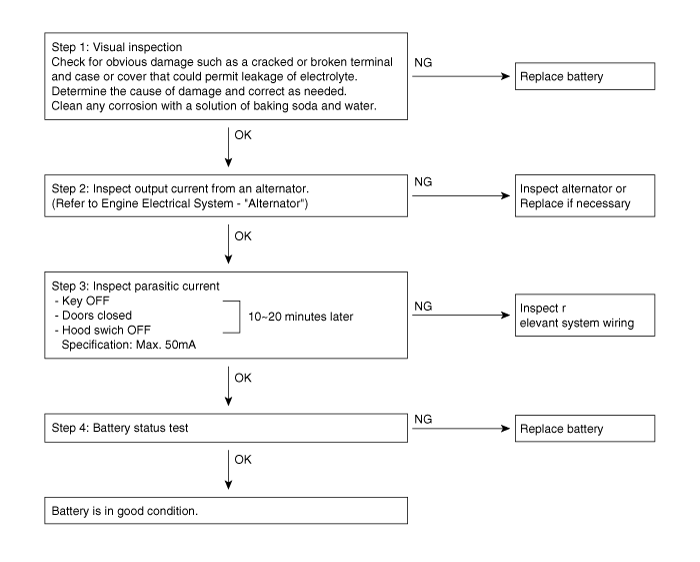

Troubleshooting
![Hyundai Palisade. Troubleshooting](images/battery-467/390/hyundai_palisade__troubleshooting_734.gif)
Specifications
Specification
Item
Specification
Rated voltage
13.5V , 180A
Speed in use
1,500 - 18,000rpm
Voltage regulator
IC Regulator built in type
Default regulated voltage (V) [COM terminal]
14...
Description and operation
Description
Vehicles have many control units that use more electricity. These units control
their own system based on information from various sensors...
Other information:
Cruise Control
The cruise control system is engaged by the cruise "ON/OFF" main switch located
on the right-hand side of steering wheel column. The system has the capability
to cruise, coast, accelerate and resume speed...
Schematic diagrams
Circuit Diagram
Repair procedures
Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the inside rear view mirror cover (A) and rain sensor cover (B)...
