Hyundai Palisade: Seat Electrical / 2nd Seat Work In System

Hyundai Palisade (LX2) 2020-2024 Service Manual / Body Electrical System / Seat Electrical / 2nd Seat Work In System

Components and components location
Component Location
Second line Seat

Hyundai Palisade. Components and components location

Luggage Side Trim

Hyundai Palisade. Components and components location

Schematic diagrams

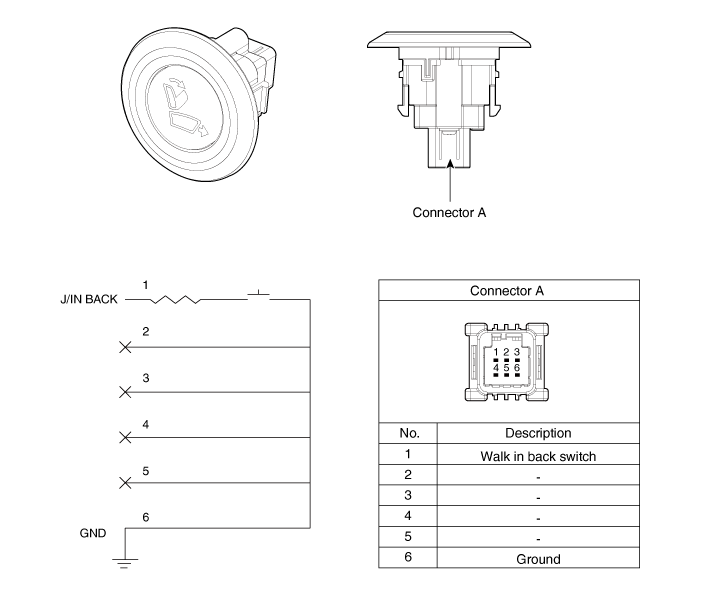

Circuit Diagram

Hyundai Palisade. Schematic diagrams

Repair procedures
Removal
Actuator
1.
Remove the rear seat.
(Refer to Body - "Rear Seat Assembly")
2.

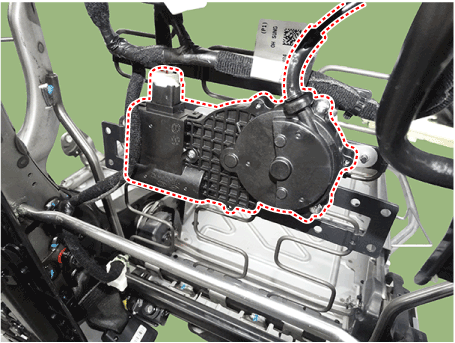

Disconnect the walk in actuator connector and then remove the actuator.

Hyundai Palisade. Repair procedures

3.

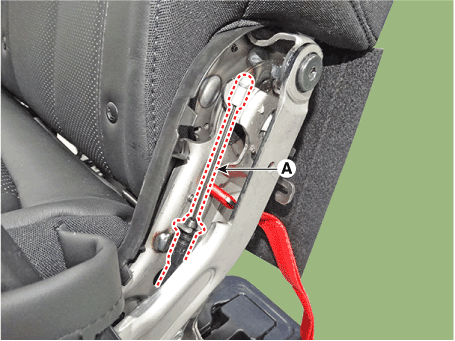

Remove the cable (A) and then separate the walk in actuator.

Hyundai Palisade. Repair procedures

Upper Walk in Swtich
1.

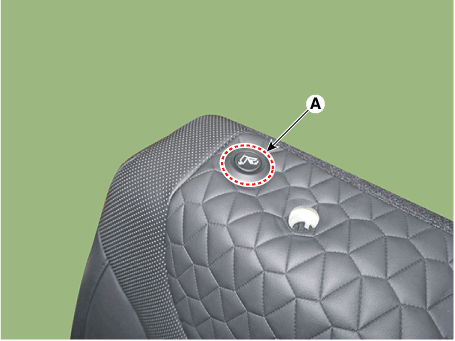

Remove the rear seat walk in switch (A).

Hyundai Palisade. Repair procedures

2.

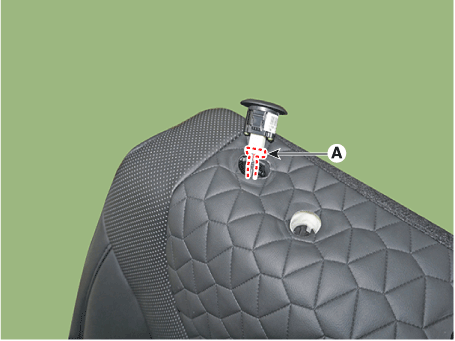

Remove the walk in switch by using a flat-head screwdriver and then disconnect the walk in switch connector (A).

Hyundai Palisade. Repair procedures

Lower Walk in Switch
1.

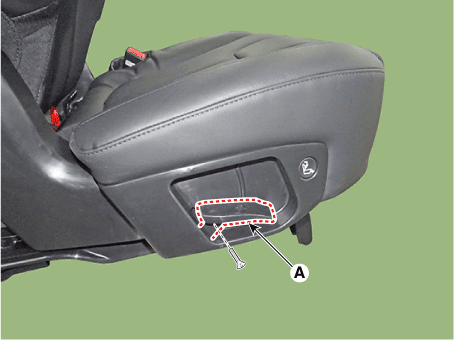

Loosen the screw and then remove the rear slide Knob (A).

Hyundai Palisade. Repair procedures

2.

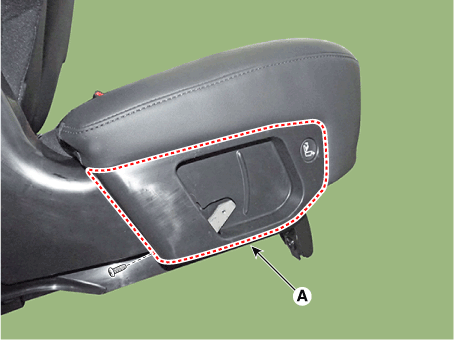

Loosen the screw and then remove the rear seat slide outer cover (A).

Hyundai Palisade. Repair procedures

3.

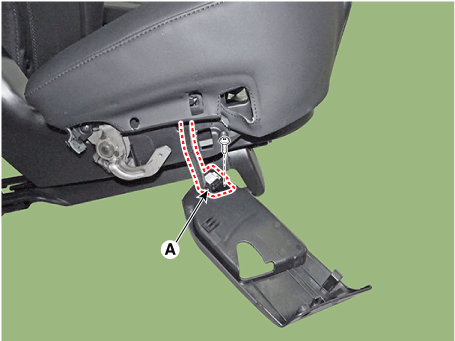

Remove the walk in swtich (A) after loosening the connector.

Hyundai Palisade. Repair procedures

Luggage Trim Remote Folding Swtich
1.
Remove the luggage side trim.
(Refer to Body - "Luggage Side Trim")
2.

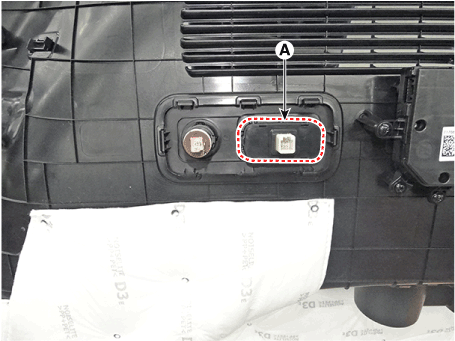

Remove the luggage remote folding switch (A).

Hyundai Palisade. Repair procedures
