Hyundai Palisade: Brake System / Repair procedures

Hyundai Palisade (LX2) 2020-2025 Service Manual / Brake System / Brake System / Repair procedures

Operation and Leakage Check

•	Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift. (Refer to General Information - "Lift and Support Points")

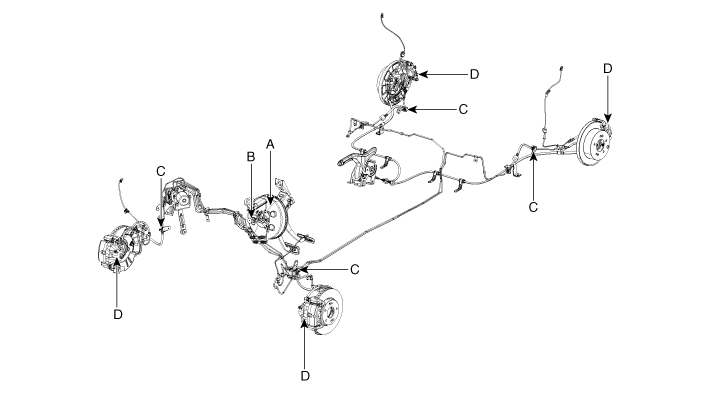

Check all of the following items :

Component

Procedure

Brake Booster (A)

Check brake operation by applying the brakes during a test drive. If the brakes do not work properly, check the brake booster. Replace the brake booster as an assembly if it does not work properly or if there are signs of leakage.

Piston cup and pressure cup inspection (B)

•	Check brake operation by applying the brakes. Look for damage or signs of fluid leakage. Replace the master cylinder as an assembly if the pedal does not work properly or if there is damage or signs of fluid leakage.

•	Check for a difference in brake pedal stroke between quick and slow brake applications. Replace the master cylinder if there is a difference in pedal stroke.

Brake hoses (C)

Look for damage or signs of fluid leakage. Replace the brake hose with a new one if it is damaged or leaking.

Caliper piston seal and piston boots

Check brake operation by applying the brakes.
Look for damage or signs of fluid leakage. If the pedal does not work properly, the brakes drag, or there is damage or signs of fluid leakage, disassemble and inspect the brake caliper. Replace the boots and seals with new ones whenever the brake caliper is disassembled.

Hyundai Palisade. Repair procedures

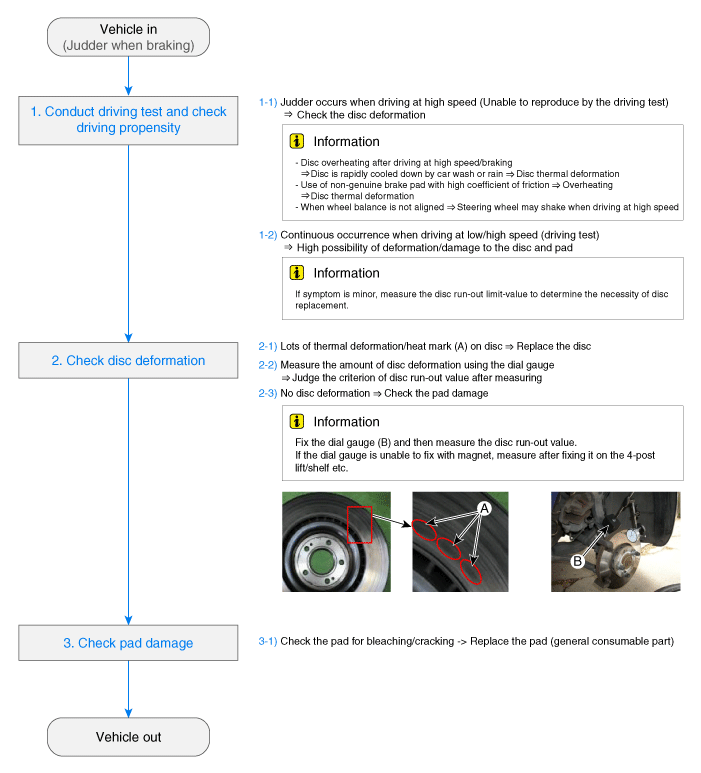

Brake System (Judder Inspection)
