Hyundai Palisade: If You Have a Flat Tire / Jack and Tools
![Hyundai Palisade. Jack and Tools](images/jack_and_tools-333/1/hyundai_palisade_jack_and_tools_710.png)
![Hyundai Palisade. Jack and Tools](images/jack_and_tools-333/1/hyundai_palisade_jack_and_tools_711.png)

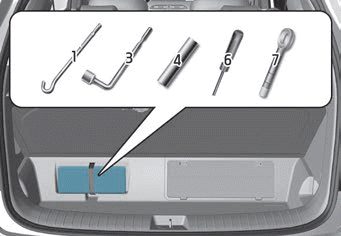

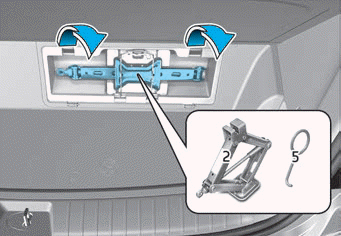

➀ Jack handle
➁ Jack
➂ Wheel lug nut wrench
➃ Socket
➄ Wheel cap removing tool
➅ Screwdriver
➆ Towing hook
The jack, jack handle, wheel lug nut
wrench and socket are stored in the
luggage compartment under the luggage
box cover.
The jack is provided for emergency
tire changing only.
WARNING
Changing a tire can be dangerous.
Follow the instructions in
this section when changing a
tire to reduce the risk of serious
injury or death...
Your spare tire is stored underneath
your vehicle, directly below the cargo
area.
To remove the spare tire:
1. Open the liftgate.
2. Find the plastic hex bolt cover and
remove the cover with a coin or
flat-blade screwdriver...
