Hyundai Palisade: Towing / Removable Towing Hook

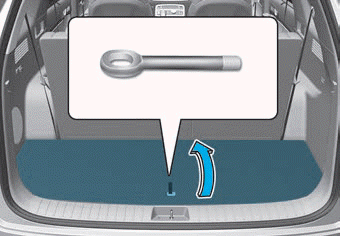

1. Open the liftgate, and remove the
towing hook from the tool case.

■ Front

■ Rear

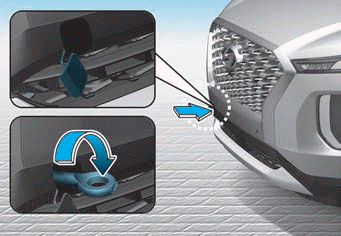

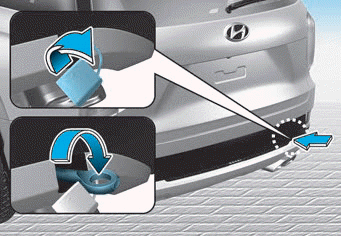

2. Remove the hole cover by pressing
the lower part of the cover on
the front or rear bumper.
3. Install the towing hook by turning it
clockwise into the hole until it is
fully secured.
4. Remove the towing hook and
install the cover after use.
[A] : Dollies
If emergency towing is necessary,
we recommend having it done by an
authorized HYUNDAI dealer or a
commercial tow-truck service.
Proper lifting and towing procedures
are necessary to prevent damage to
the vehicle...
If towing is necessary, we recommend
you have it done by an authorized
HYUNDAI dealer or a commercial
tow truck service.
If towing service is not available in an
emergency, your vehicle may be
temporarily towed using a cable or
chain secured to the emergency towing
hook at the front (or rear) of the
vehicle...
