Hyundai Palisade: Driver Assist System / Rear View Monitor

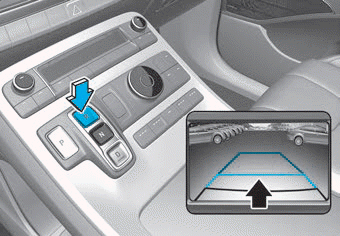

The Rear View Monitor will activate
when the engine is running and the
shift button is in the R (Reverse)
position.

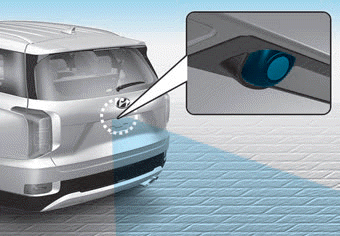

This is a supplemental system that
helps provide a view of the area
behind the vehicle through the infotainment
system screen while the
vehicle is in the R (Reverse) position.
WARNING
The Rear View Monitor is not a
safety device. It only serves to
assist the driver in identifying
objects directly behind the middle
of the vehicle. The camera
does NOT cover the complete
area behind the vehicle.
WARNING
- Never rely solely on the Rear
view monitor when backingup.
- ALWAYS look around your
vehicle to make sure there are
no objects or obstacles before
moving the vehicle in any
direction to prevent a collision.
- Always pay close attention
when the vehicle is driven
close to objects, particularly
pedestrians, and especially
children.
NOTICE
Always keep the camera lens
clean. The camera may not work
normally if the lens is covered
with dirt, water or snow.
The Surround View Monitoring system
can assist in parking by allowing
the driver to see around the vehicle.
Push the button (1, indicator ON) to
operate the system...
Other information:
In this mode, you can change the
settings of the instrument cluster,
doors, lamps, etc.
1. Head-up display
2. Driver Assistance
3. Door
4. Lights
5. Sound
6. Convenience
7. Service interval
8. Other
9. Language
10. Reset
The information provided may differ
depending on which functions are
applicable to your vehicle...
Components and components location
Components
1. Remote control switch (LH
: Audio + Voice)
2. Remote control switch (RH
: Trip + Cruise)
Schematic diagrams
Circuit Diagram
[Audio / Bluetooth / Voice]
[Trip + Cruise]
[Trip + Cruise + Smart cruise]
Repair procedures
Inspection
1...
Categories
The SRS consists of the following
components:
1. Driver's front air bag module
2. Passenger's front air bag module
3. Side air bag modules
4. Curtain air bag modules
5. Retractor pre-tensioner
6. Air bag warning light
7. SRS control module (SRSCM)/
Rollover sensor
8. Front impact sensors
9. Side impact sensors
10.Side pressure sensors
11. Occupant classification system
12. Driver’s knee airbag module
read more
