Components and components location

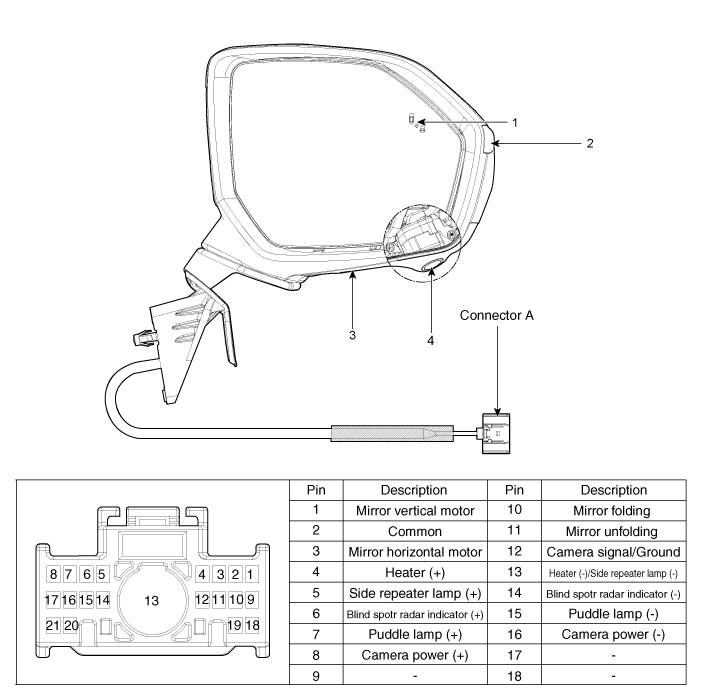

Components

Hyundai Palisade. Components and components location

1. Blind spot radar warning indicator
2. Side repeater lamp
3. Puddle lamp
4. SVM camera

Repair procedures
Inspection
1.
Disconnect the negative (-) battery terminal.
2.
Remove the door trim.
(Refer to Body - "Front Door Trim")
3.

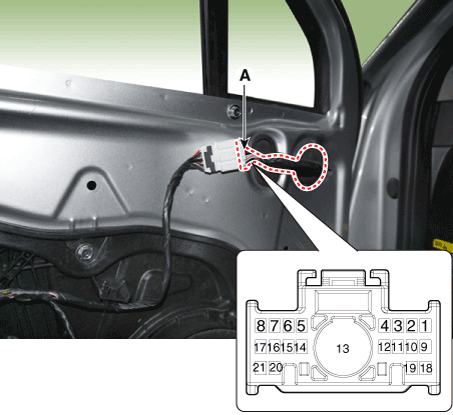

Disconnect the power door mirror connector (A) from the harness.

Hyundai Palisade. Repair procedures

4.

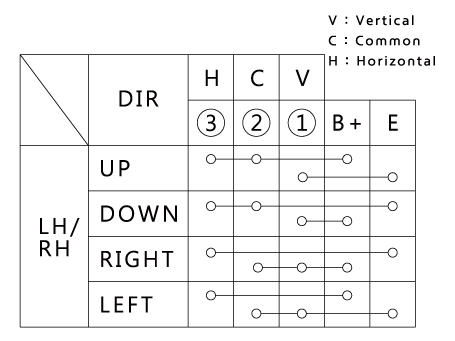

Apply battery voltage to each terminal as shown in the table and verify that the mirror operates properly.

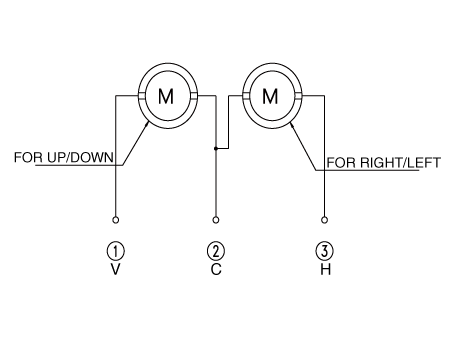

[Actuator]

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures

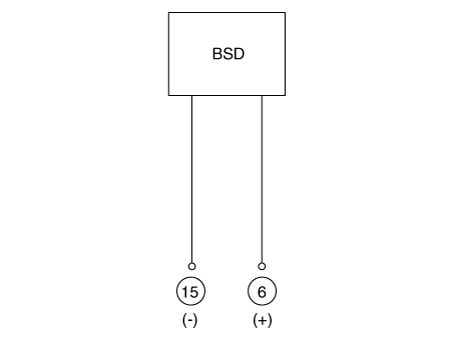

Blind spot radar Indicator

Hyundai Palisade. Repair procedures

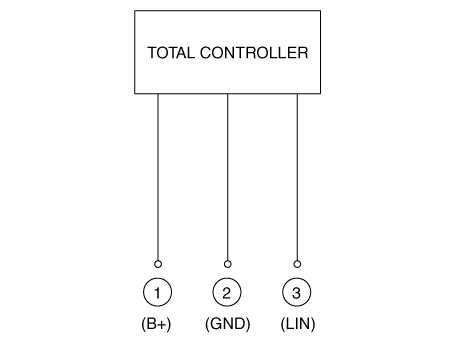

Control Unit

Hyundai Palisade. Repair procedures

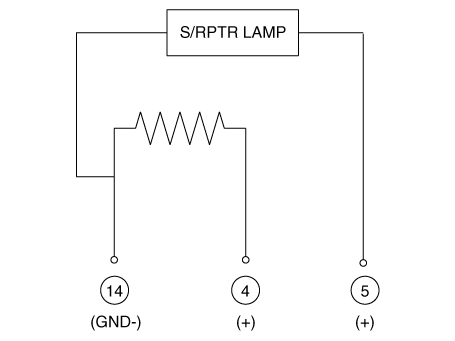

Mirror Heater

Hyundai Palisade. Repair procedures

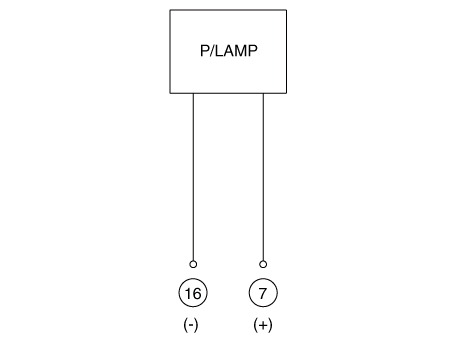

Puddle Lamp

Hyundai Palisade. Repair procedures

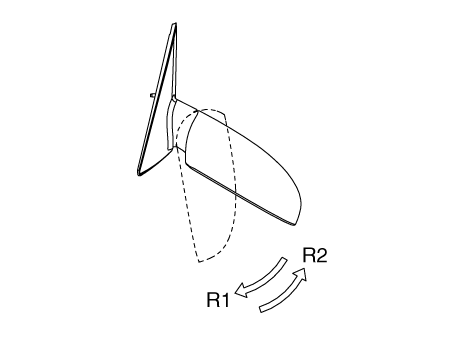

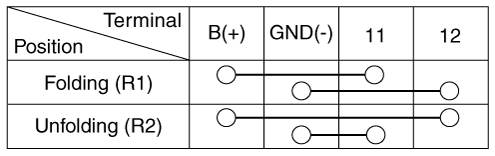

Folding Mirror

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures

Removal
1.
Disconnect (-) battery terminal.
2.

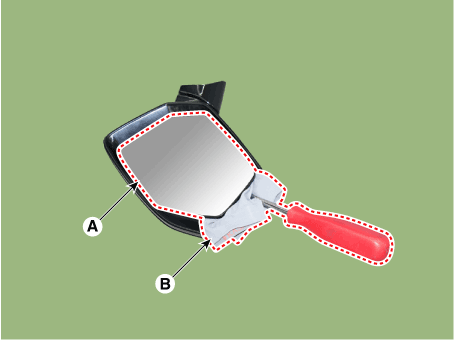

Using a fastener remover (C), remove the mirror (A) as illustration below.

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures
Protect mirror from removing tool with cloth (B) wrapped.
Be careful not to damage mirror and mirror housing during removing process.
Apply force around the center of mirror because to apply force the end of mirror will break it.
3.

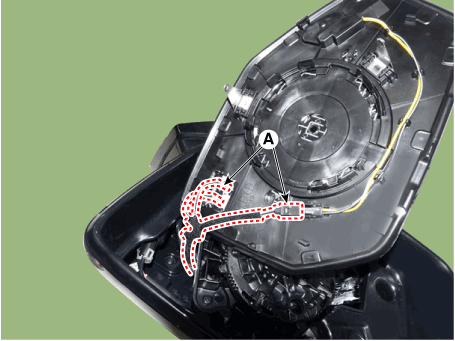

Disconnect heat wire connectors (A) and then remove the mirror.

Hyundai Palisade. Repair procedures

Installation
1.
Install the mirror after connecting mirror connectors.
2.
Connect (-) battery terminal then check if mirror works normally.

    Power Door Mirror Actuator
