Hyundai Palisade: Front Seats / Power adjustment

Hyundai Palisade (LX2) 2020-2024 Owner's Manual / Safety System of Your Vehicle / Seats / Front Seats / Power adjustment

The front seat can be adjusted by using the control switches located on the outside of the seat cushion. Before driving, adjust the seat to the proper position so that you can easily control the steering wheel, foot pedals and controls on the instrument panel.

WARNING

NEVER allow children in the vehicle unattended. The power seats are operable when the vehicle is turned off.

NOTICE

To prevent damage to the seats:

  • Always stop adjusting the seats when the seat has moved as far forward or rearward as possible.
  • Do not adjust the seats for longer than necessary when the vehicle is turned off. This may result in unnecessary battery drain.
  • Do not operate two or more seats at the same time. This may result in an electrical malfunction.

Hyundai Palisade. Power adjustment

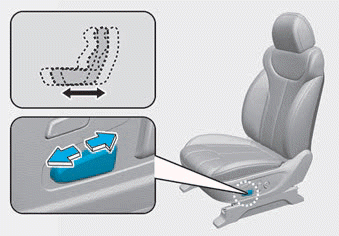

Forward and rearward adjustment

To move the seat forward or rearward:

1. Push the control switch forward or rearward.

2. Release the switch once the seat reaches the desired position.

Hyundai Palisade. Power adjustment

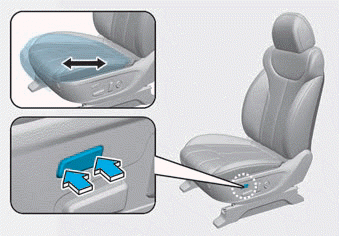

Cushion extension (for driver's seat, if equipped)

To move the front part of cushion forward:

1. Push the front part of control switch to move the seat cushion to the desired length.

2. Release the switch once the seat cushion reaches the desired length.

To move the front part of cushion rearward:

1. Push the rear part of control switch to move the seat cushion to the desired length.

2. Release the switch once the seat cushion reaches the desired length.

Hyundai Palisade. Power adjustment

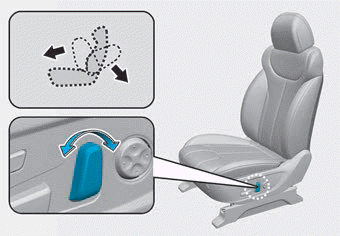

Seatback angle

To adjust the seatback:

1. Rotate the top of control switch forward or rearward.

2. Release the switch once the seatback reaches the desired position.

Reclining seatback

Sitting in a reclined position when the vehicle is in motion can be dangerous. Even when buckled up, the protection of your restraint system (seat belts and air bags) is greatly reduced by reclining your seatback.

WARNING

NEVER ride with a reclined seatback when the vehicle is moving.

Riding with a reclined seatback increases your chance of serious or fatal injuries in the event of a collision or sudden stop.

Driver and passengers should ALWAYS sit well back in their seats, properly belted, and with the seatbacks upright.

Seat belts must be snug against your hips and chest to work properly. When the seatback is reclined, the shoulder belt cannot do its job because it will not be snug against your chest. Instead, it will be in front of you. During an accident, you could be thrown into the seat belt, causing neck or other injuries.

The more the seatback is reclined, the greater chance the passenger’s hips will slide under the lap belt or the passenger's neck will strike the shoulder belt.

Hyundai Palisade. Power adjustment

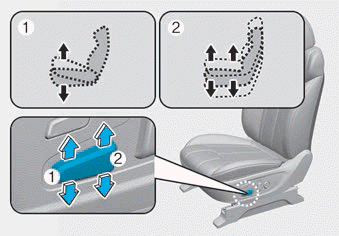

Seat cushion tilt (1)

To change the angle of the front part of the seat cushion:

Push the front portion of the control switch up to raise or down to lower the front part of the seat cushion. Release the switch once the seat reaches the desired position.

Seat cushion height (2)

To change the height of the seat cushion:

Push the rear portion of the control switch up to raise or down to lower the height of the seat cushion.

Release the switch once the seat reaches the desired position.

Hyundai Palisade. Power adjustment

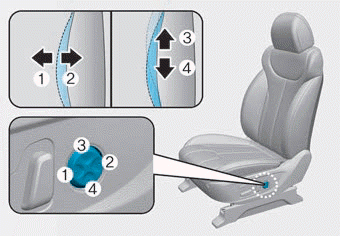

Lumbar support (2way) (for driver’s seat)

The lumbar support can be adjusted by pressing the lumbar support switch.

  • The lumbar support can be adjusted by pressing the lumbar support switch.
  • Press the front portion of the switch (1) to increase support or the rear portion of the switch (2) to decrease support.

Lumbar support (4way) (for driver’s seat) (if equipped)

The lumbar support can be adjusted by pressing the lumbar support switch.

  • Press the front portion of the switch (1) to increase support or the rear portion of the switch (2) to decrease support.
  • To move the support position up or down, press switch (3) or (4).

    Manual adjustment

    The front seat can be adjusted by using the levers located on the outside of the seat cushion. Before driving, adjust the seat to the proper position so that you can easily control the steering wheel, foot pedals and controls on the instrument panel...

    Seatback pocket

    The seatback pocket is provided on the back of the front passenger's seatback. WARNING To prevent the Occupant Classification System from malfunctioning: Do not hang onto the front passenger's seatback...
