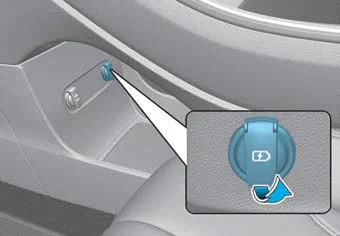

â– Front

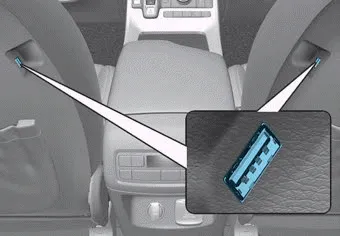

â– Rear (2nd row)

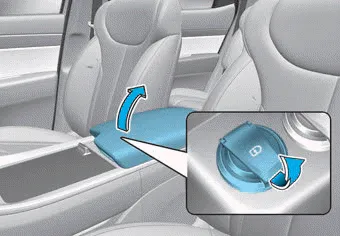

â– Center console storage

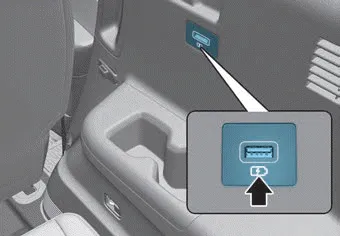

â– Rear (3rd row, left side)

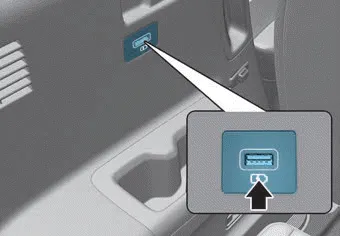

â– Rear (3rd row, right side)
The USB charger is designed to recharge batteries of small size electrical devices using a USB cable.
The electrical devices can be recharged when the ignition switch is ON. Insert the USB charger into the USB port, and re-charge a smart phone or a tablet PC.
The battery charging state may be monitored on the electrical device.
Disconnect the USB cable from the USB port after use.
