Hyundai Palisade (LX2): Convenient Features of Your Vehicle / Sunroof

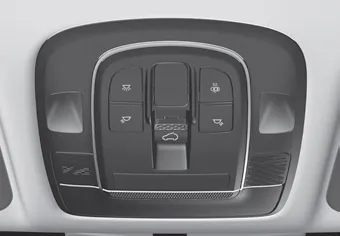

If your vehicle is equipped with a sunroof, you can slide or tilt your sunroof with the sunroof control lever located on the overhead console.
The ignition switch must be in the ON position before you can open or close the sunroof.
The sunroof can be operated for approximately 10 minutes after the ignition switch is removed or turned to the ACC or LOCK/OFF position.
However, if the front doors are opened, the sunroof cannot be adjusted even within the 10 minutes period.
- Dual wide sunroof
- Sunshade
- Sunroof Opening, Closing, Sliding
- Tilting the Sunroof (Front)
- Resetting the Sunroof
- Resetting the rear sunshade
- Sunroof Open Warning
The driver can disable the power window switches on the rear passenger doors by pressing the power window lock switch. When the power window lock switch is pressed: The rear passenger control will not be able to operate the rear passenger power window Note that the front passenger control is still able to operate the front passenger window, and that the driver master control can still operate all the power windows.
[A] : Front sunroof control lever, [B] : Rear blind control button If your vehicle is equipped with a dual wide sunroof, you can slide or tilt your sunroof with the sunroof control lever located on the overhead console.
