Repair procedures

Removal
1.
Turn the ignition switch OFF and disconnect the battery negative (-) cable.
2.
Turn the steering wheel so that the front wheels are placed in the straight ahead position.
3.

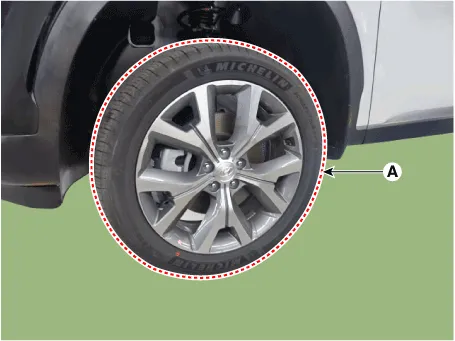

Remove the front wheel and tire (A) from front hub.
Tightening torque :
107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)
Hyundai Palisade. Repair procedures
•
Be careful not to damage the hub bolts when removing the front wheel and tire (A).

Hyundai Palisade. Repair procedures
4.

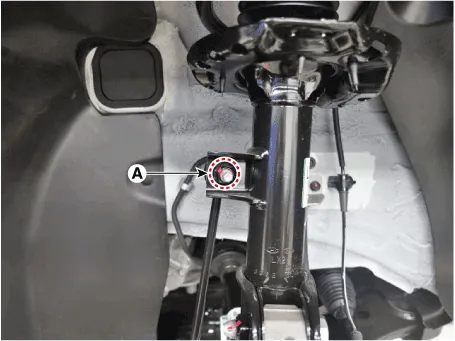

Disconnect the stabilizer link with the front strut assembly after loosening the nut (A).
Tightening torque :
98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)
Hyundai Palisade. Repair procedures
•
When loosening the nut (A), fix the outer hexagon of stabilizer bar link.
•
Be careful not to damage the stabilizer link boots.

Hyundai Palisade. Repair procedures
5.
Remove the tie rod end ball joint.
(1)
Remove the split pin and nut (A).
(2)

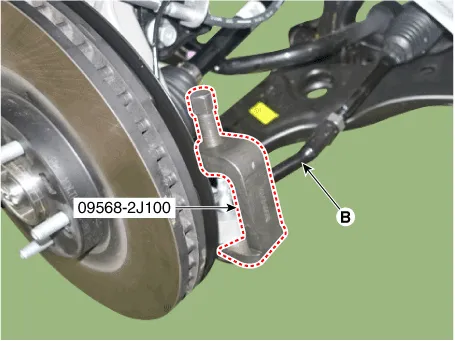

Using SST(09568-2J100), separate the ball joint (B) from the knuckle.
Tightening torque :
98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures
6.

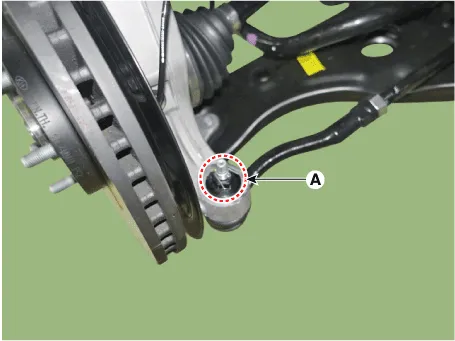

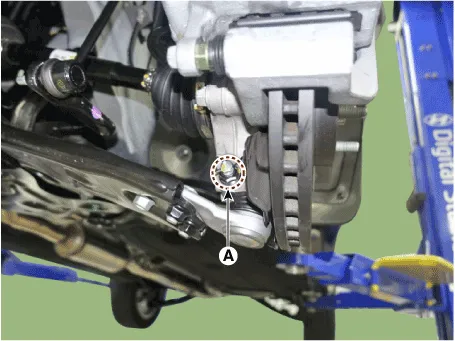

Remove the split pin and nut (A).
Tightening torque :
98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)

Hyundai Palisade. Repair procedures
7.

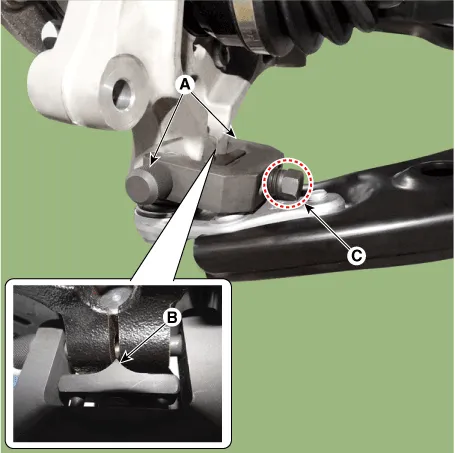

Remove the lower arm from the knuckle by using the SST (09568-4R100).
(1)
Install the support bolt (A) from lower arm bolt hole.
(2)
Install the support body (B) from front axle.
(3)
Tighten the bolt (C).

Hyundai Palisade. Repair procedures
8.

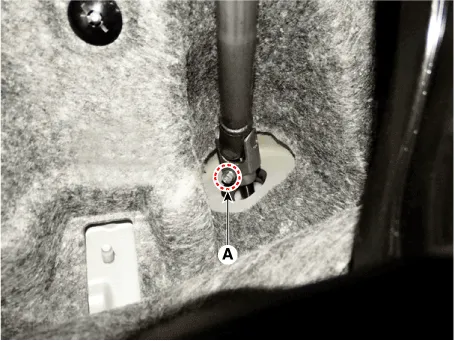

Loosen the bolt (A) and then disconnect the universal joint assembly from the pinion of the steering gear box.
Tightening torque :
32.4 - 37.3 N.m (3.3 - 3.8 kgf.m, 23.9 - 27.5 lb-ft)

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures
•
Do not reuse the bolt.
•
Lock the steering wheel in the straight ahead position to prevent the damage of the clock spring inner cable.
•

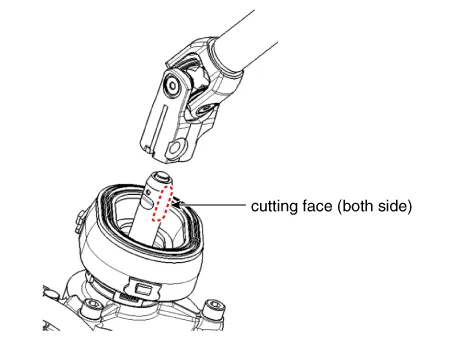

Assemble so that the universal joint hole is inserted matching the cut surface of the pinion shaft.

Hyundai Palisade. Repair procedures
9.
Remove the under cover.
(Refer to Engine Mechanical System - "Engine Room Under Cover")
10.

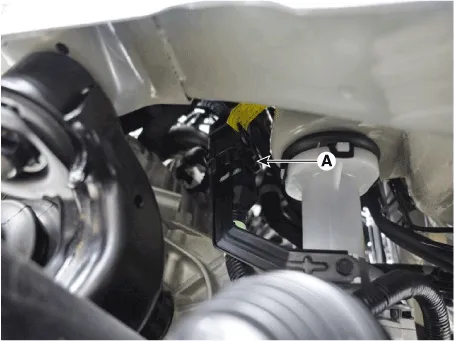

Disconnect the R-MDPS main connector (A). [R-MDPS Type only]

Hyundai Palisade. Repair procedures
11.

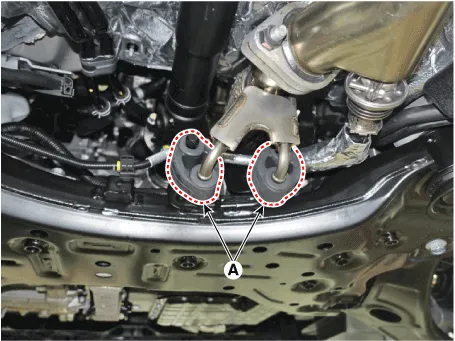

Remove the muffler rubber hanger (A).

Hyundai Palisade. Repair procedures
12.

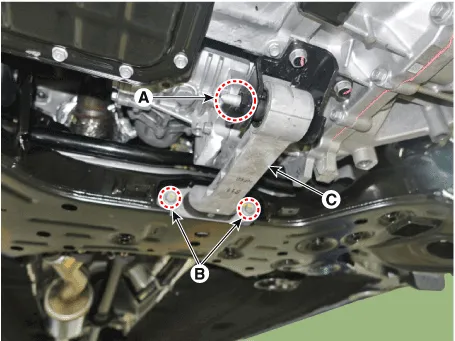

Remove the roll rod bracket (C) by loosening the bolt (A), (B).
Tightening torque
(A) : 107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)
(B) : 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)

Hyundai Palisade. Repair procedures
13.

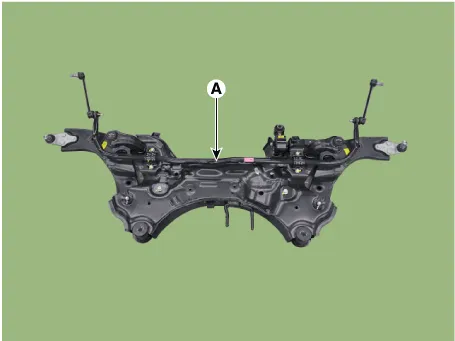

Remove the subframe by loosening the mounting bolts and nuts.
Hyundai Palisade. Repair procedures
•

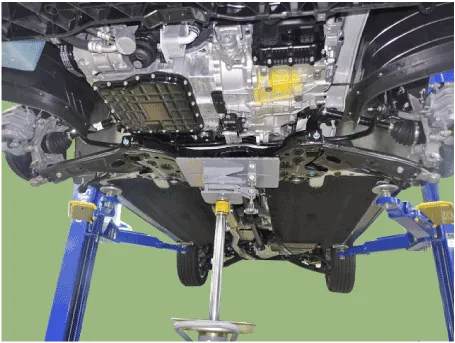

Set a transmission jack for safety.
Tightening torque
Sub frame mounting bolts and nut :
176.5 - 196.1 N.m (18.0 - 20.0 kgf.m, 130.2 - 144.7 b-ft)
Sub frame stay mounting bolt :
44.1 - 53.9 N.m (4.5 - 5.5 kgf.m, 32.5 - 39.8 lb-ft)

Hyundai Palisade. Repair procedures
14.

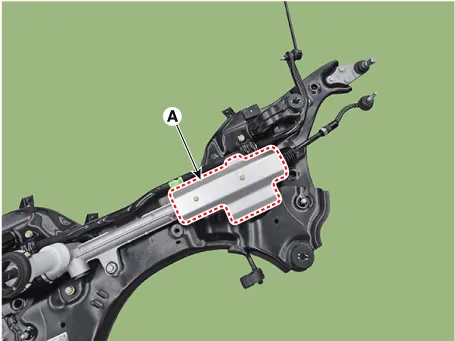

Remove the heated protector (A).
Tightening torque :
6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb-ft)
[C-MDPS]

Hyundai Palisade. Repair procedures

[R-MDPS]

Hyundai Palisade. Repair procedures
15.

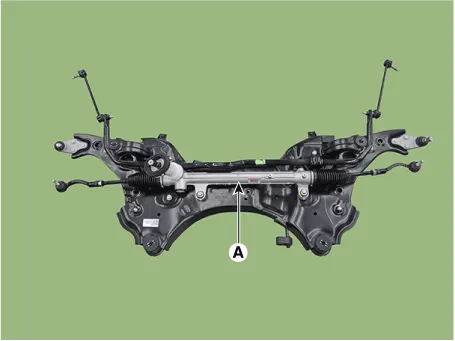

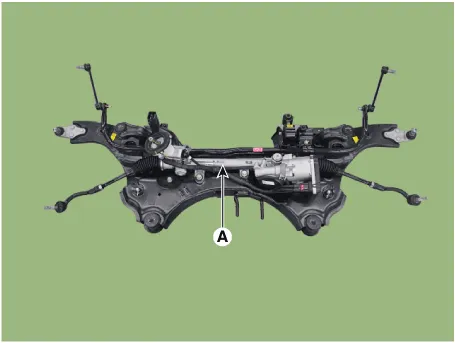

Remove the steering gearbox (A) from the front sub frame by loosening the mounting bolts.
Tightening torque :
88.2 - 107.8 N.m (9.0 - 11.0 kgf.m, 65.0 - 79.5 lb-ft)
[C-MDPS]

Hyundai Palisade. Repair procedures

[R-MDPS]

Hyundai Palisade. Repair procedures
16.
Loosen the mounting bolts and then remove the stabilizer bar (A).
Tightening torque :
49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)

Hyundai Palisade. Repair procedures
17.

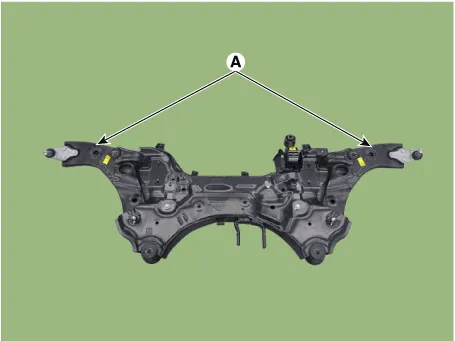

Remove the front lower arm (A) from the sub frame.
Tightening torque :
Front : 117.7 - 137.3 N.m (12.0 - 14.0 kgf.m, 86.8 - 101.3 lb-ft)
Rear : 156.9 - 176.5 N.m (16.0 - 18.0 kgf.m, 115.7 - 130.2 lb-ft)

Hyundai Palisade. Repair procedures
Installation
1.
Install in the reverse order of removal.
2.
Check the alignment.
(Refer to Suspension System - "Alingment")
