| Schematic Diagram |

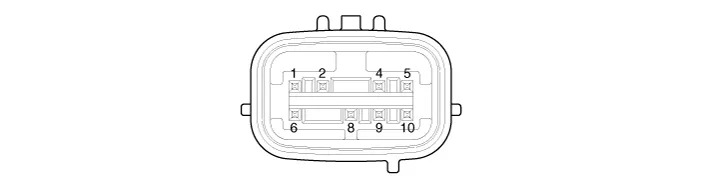

| Terminal Function |

|
No |
Function |
|
1 |
IGN |
|
2 |
- |
|
3 |
- |
|
4 |
L-CAN High |
|
5 |
L-CAN Low |
|
6 |
- |
|
7 |
- |
|
8 |
C-CAN High |
|
9 |
C-CAN Low |
|
10 |
GND |
