Hyundai Palisade (LX2): Forward Collision-Avoidance Assist (FCA) System / Components and components location
| Components |
| – |

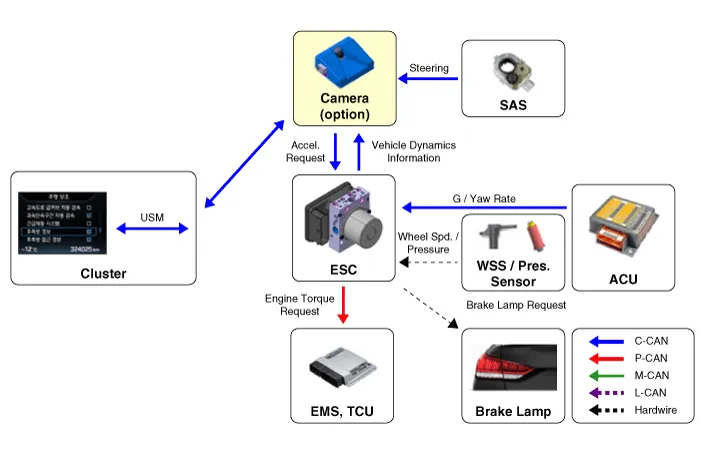

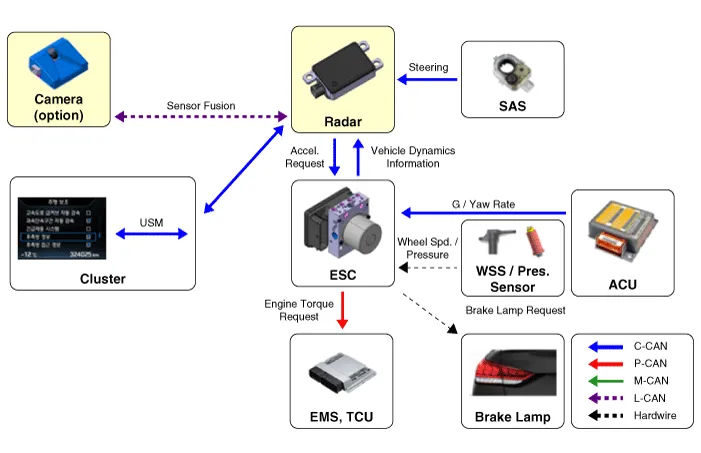

Detection device (radar and camera) that can recognize potential obstacles
in the front.
|
| – |
Human-Machine Interface (HMI) to warn driver or change settings.
|
| – |
Braking system to automatically brake the car
|
| – |
Detection device (radar and camera) that can recognize potential obstacles
in the front.
|
| – |
Human-Machine Interface (HMI) to warn driver or change settings.
|
| – |
Braking system to automatically brake the car
|
Description – FCA system is designed to help avoid a potential collision or reduce its impact when drivers applies inadequate, delayed or no brakes at all to avoid a collision.
Schematic Diagram Terminal Function No Function 1 IGN 2 - 3 - 4 L-CAN High 5 L-CAN Low 6 - 7 - 8 C-CAN High 9 C-CAN Low 10 GND
