Hyundai Palisade (LX2): Motor Driven Power Steering / Schematic diagrams
| Schematic Diagrams |
|

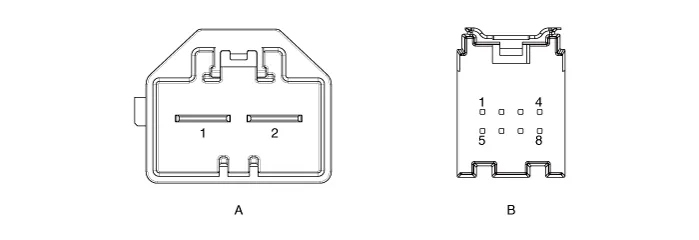

Type |
Pin No |
Description |
|
MDPS Power |
1 |
Battery + |
|
2 |
Battery - |
|
|
MDPS Unit |
1 |
IGN1 |
|
2 |
- |
|
|
3 |
- |
|
|
4 |
- |
|
|
5 |
- |
|
|
6 |
- |
|
|
7 |
C-CAN [High] |
|
|
8 |
C-CAN [Low] |
Components [C-MDPS] 1. Steering wheel 2. Steering column 3. MDPS powerpack assembly 4. Universal joint 5.
A/S Repair produres [C-MDPS] MDPS System A/S Workflow â‘ Noise / malfunction Inspection â‘¡ Warning lamp (DTC) / CAN Line error 2 - 1 Checking Connectors and Wiring 1.
