Replacement
Hyundai Palisade. Repair procedures
•
Wear gloves to protect hands from injury.
•
Take care not to scratch the body surface.
1.

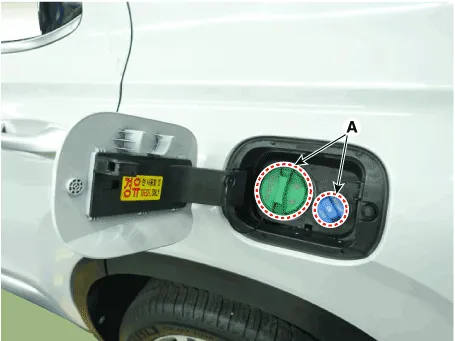

Open the fuel filler cap and urea cap (A).

Hyundai Palisade. Repair procedures
2.
Remove the luggage side trim.
(Refer to interior trim - "Luggage Side Trim")
3.

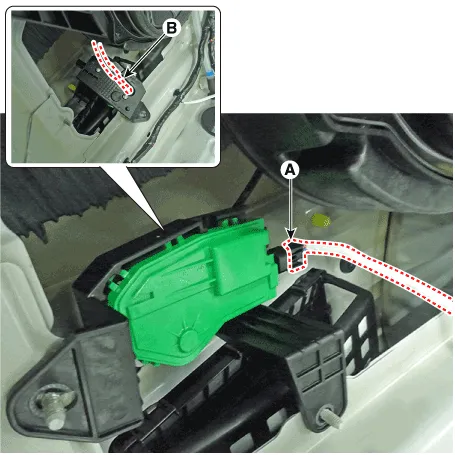

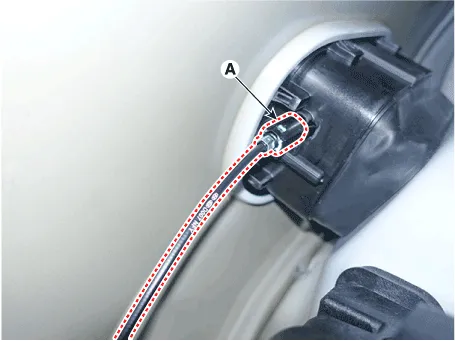

Separate the fuel filler door actuator connector (A) and remove the fuel filler door cable rod (B).

Hyundai Palisade. Repair procedures
4.

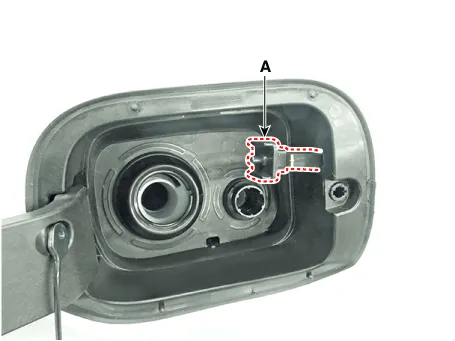

Remove the fuel filler door cable (A).

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures
5.

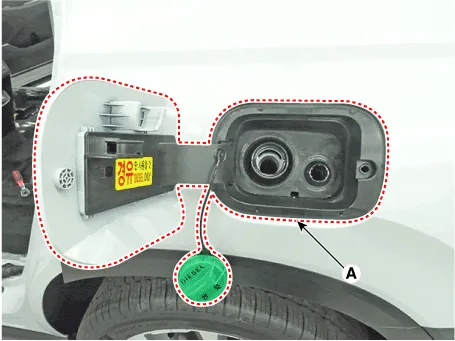

Remove the fuel filler door assembly (A).

Hyundai Palisade. Repair procedures
6.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
•
Make sure the fuel filler door locks and opens properly and locks securely.
