Hyundai Palisade (LX2): Rear Occupant Alert / Repair procedures
Hyundai Palisade (LX2) 2020-2026 Service Manual / Body Electrical System / Rear Occupant Alert / Repair procedures
| Removal |
| 1. |
Disconnect the negative (-) battery terminal.
|
| 2. |

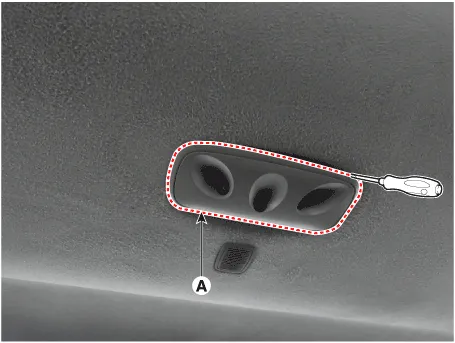

Remove the cover (A) by using a flat-tip screwdriver.
|
| 3. |

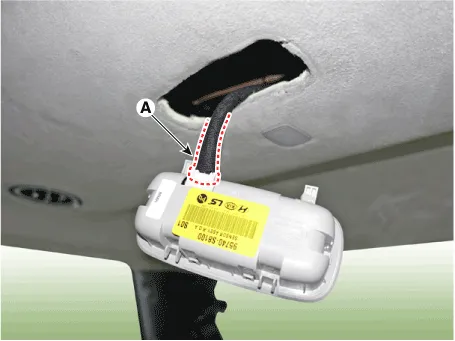

Disconnect the connector (A) and then remove the occupant alert sensor.
|
| Installation |
| 1. |
Install the occupant alert sensor.
|
| 2. |
Connect the negative (-) battery terminal.
|
Description The system detects the passenger in the vehicle and prevents the driver from getting off the vehicle with the passenger in the back.
