Hyundai Palisade (LX2): Daytime Running Lights / Repair procedures
Hyundai Palisade (LX2) 2020-2026 Service Manual / Body Electrical System / Daytime Running Lights / Repair procedures
| Removal |
| 1. |
Disconnect the negative (-) battery terminal.
|
| 2. |
Remove the front bumper.
(Refer tor Body - "Front Bumper")
|
| 3. |

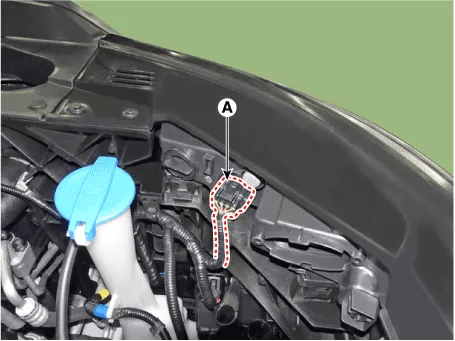

Disconnect the DRL connector (A).
|
| 4. |
Remove the DRL from the vehicle.
|
| Installation |
| 1. |
Install the DRL.
|
| 2. |
Install the front bumper.
|
| 3. |
Connect the negative (-) battery terminal.
|
