Hyundai Palisade (LX2): Interior Lights / Rear lamp, Luggage compartment lamp
Rear lamp
Rear Room Lamp (
):
Press either buttons to turn the room lamp on or off.

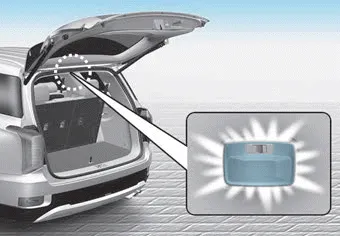

Luggage compartment lamp
• ON (
) :
The luggage compartment lamp stays on at all times.
• DOOR (
) :
The luggage compartment lamp comes on when the liftgate is opened.
• OFF (
) :
The luggage compartment lamp is off.
Interior lamp AUTO cut The interior lamps will automatically go off approximately 20 minutes after the engine is turned off and the doors are closed.
Vanity mirror lamp Opening the lid of the vanity mirror will automatically turn on the mirror light. NOTICE To prevent unnecessary charging system drain, close the vanity mirror cover after using the mirror.
