Hyundai Palisade (LX2): Lubrication System / Oil Level Gauge & Pipe

Hyundai Palisade (LX2) 2020-2026 Service Manual / Engine Mechanical System / Lubrication System / Oil Level Gauge & Pipe

Repair procedures

Removal and Installation
1.

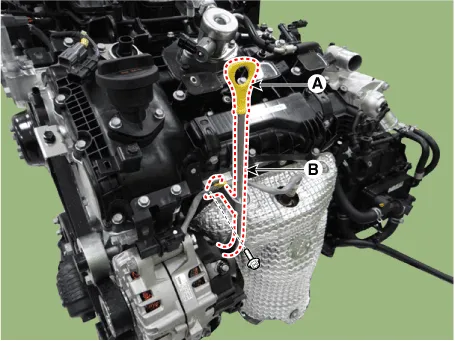

Remove the oil level gauge (A) and the oil level gauge rod (B).
Tightening torque:
18.6 - 22.6 N.m (1.9 - 2.3 kgf.m, 13.7 - 16.6 lb.ft)

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures
•
When installing, apply engine oil to the o-ring and be careful not to damage the O-ring.
•
Always use a new O-ring.
2.
Install in the reverse order of removal.

    Repair procedures Removal and Installation    • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
