Hyundai Palisade (LX2): Crash Pad / Crash Pad Side Cover

Hyundai Palisade (LX2) 2020-2026 Service Manual / Body (Interior and Exterior) / Crash Pad / Crash Pad Side Cover

Components and components location

Component Location

[LH]

Hyundai Palisade. Components and components location

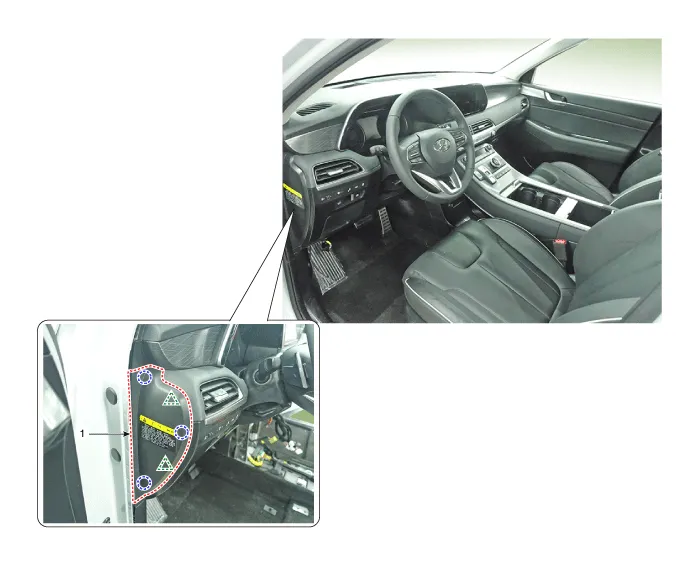

1. Crash pad side cover [LH]

[RH]

Hyundai Palisade. Components and components location

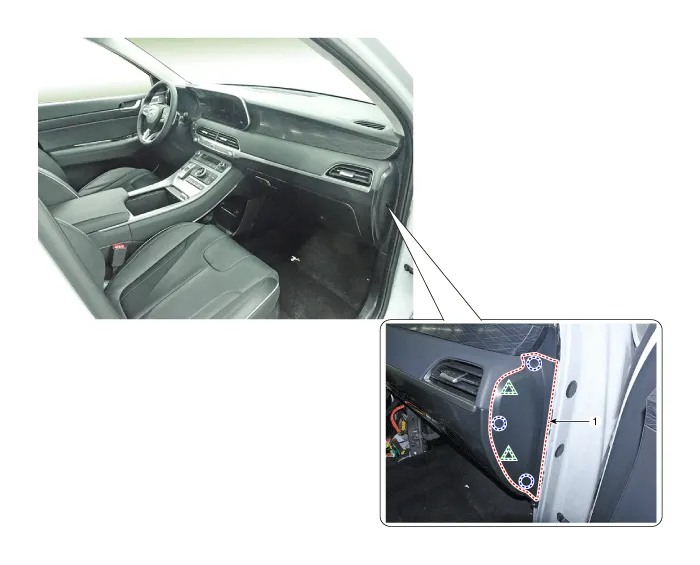

1. Crash pad side cover [RH]

Repair procedures

Replacement

•	When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

•	Put on gloves to prevent hand injuries.

•	Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•	Take care not to bend or scratch the trim and panels.

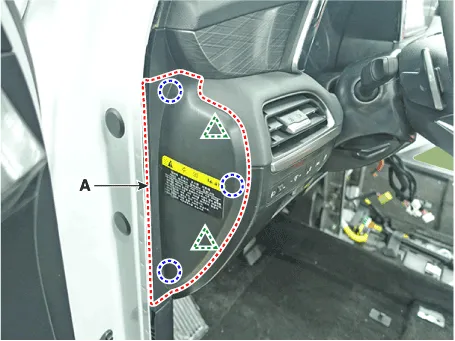

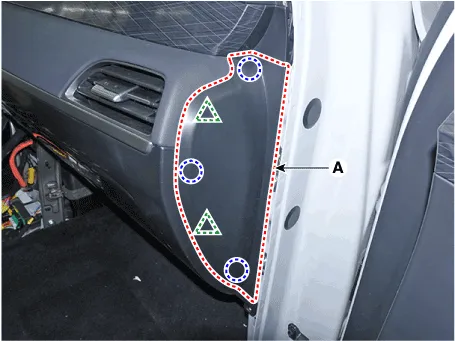

1.	Using a flat-tip screwdriver or remover and remove the crash pad side cover (A). [LH] [RH]

To install, reverse removal procedure.

•	Replace any damaged clips (or pin-type retainers).
