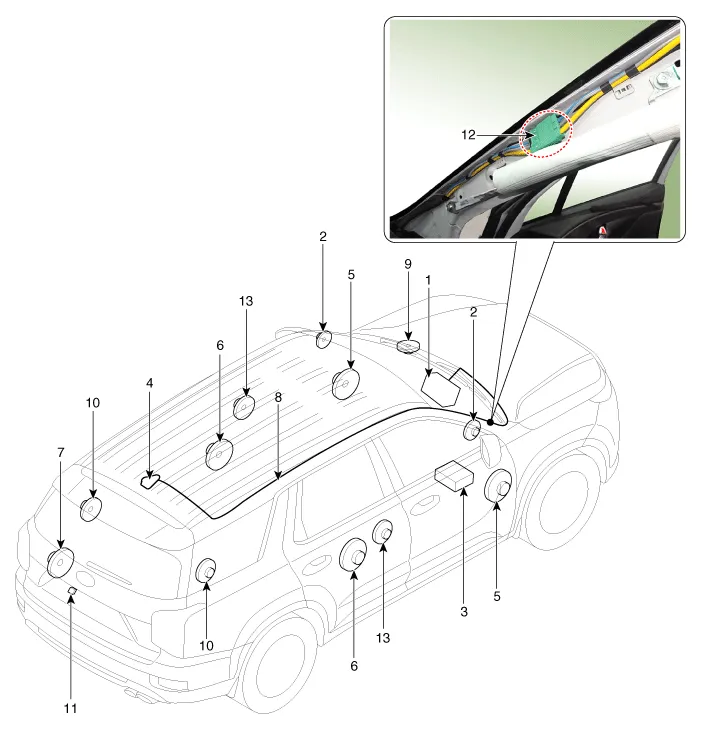

Components Location

Hyundai Palisade. Components and components location

1. AVN (A/V & Navigation head unit)
2. Front tweeter speaker
3. External amplifier
4. Roof antenna
5. Front door speaker
6. Rear door speaker

7. Subwoofer speaker
8. Antenna feeder cable
9. Front center speaker
10. Surround speaker
11. Rear view monitor
12. Feeder cable joint connector
13. Rear tweeter speaker
