Hyundai Palisade (LX2): Front Door / Components and components location

Components

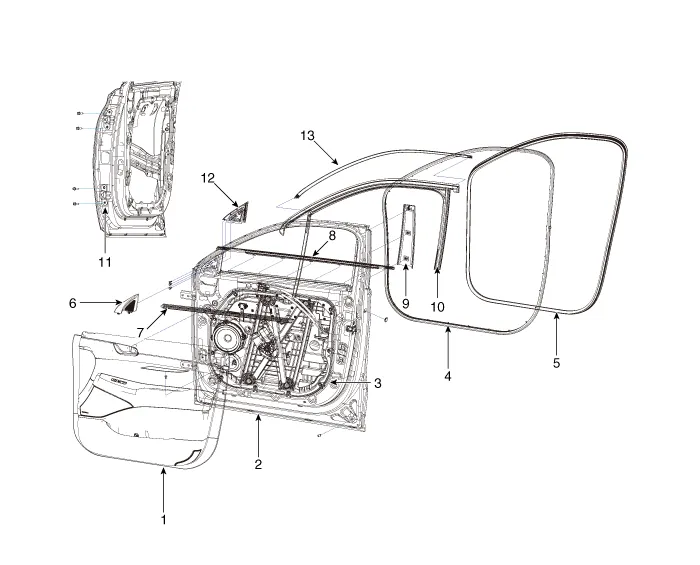

Hyundai Palisade. Components and components location

1. Front door trim
2. Front door panel
3. Front door module
4. Front door door side weatherstrip
5. Front door body side weatherstrip
6. Front door quadrant inner cover
7. Front door belt inside weatherstrip
8. Front door belt outside weatherstrip
9. Front door frame garnish assembly
10. Front door window glass run assembly
11. Front door hinge
12. Front door quadrant garnish
13. Front door frame molding.

    Components and components location Component Location 1. Front door trim Repair procedures Replacement    • Put on gloves to prevent hand injuries.
