Components

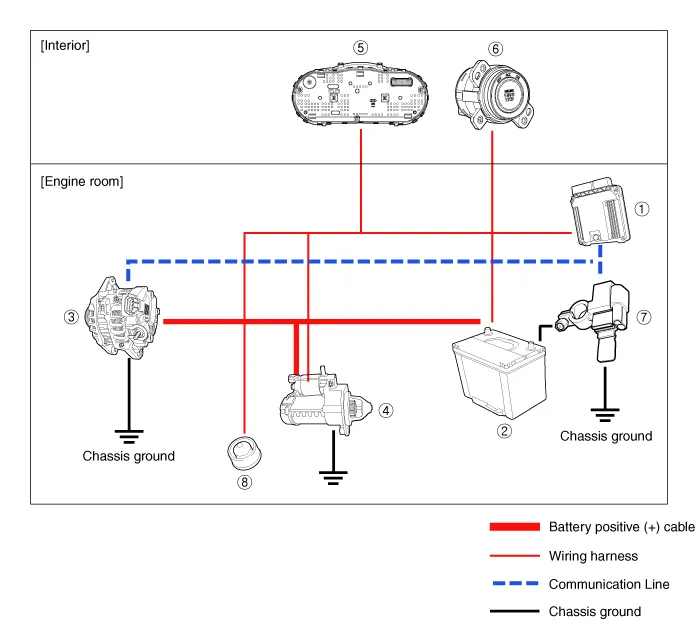

Hyundai Palisade. Components and components location

â‘  ECM
â‘¡ Battery
â‘¢ Alternator
â‘£ Starter
⑤ Instrument Cluster
â‘¥ Ignition switch or start/stop button
⑦ Battery sensor
⑧ Hood switch

    Description The charging system includes a battery, an alternator with a built-in regulator, and the charging indicator light and wire.
