Hyundai Palisade: ESP(Electronic Stability Program) System / Front Wheel Speed Sensor

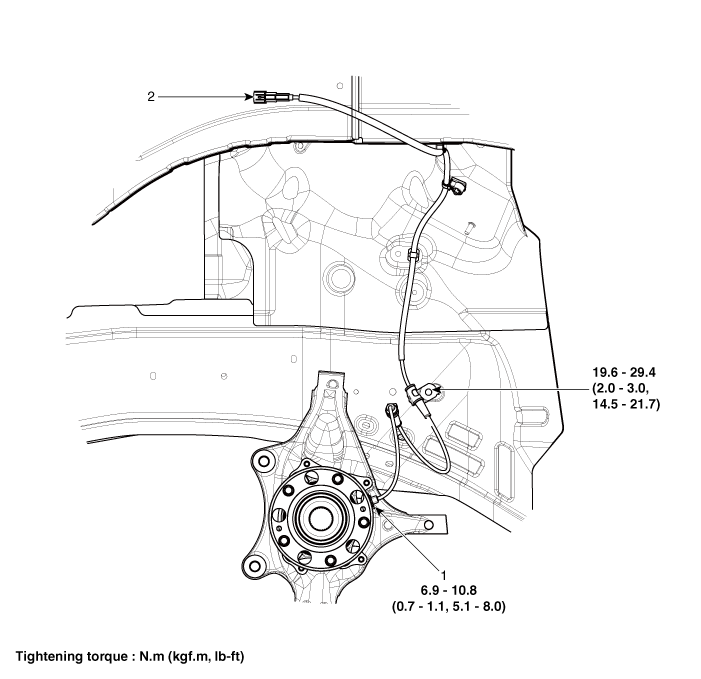

Components and components location
![Hyundai Palisade. Components and components location](images/front_wheel_speed_sensor-709/390/hyundai_palisade__components_and_components_location_2468.gif)
1. Front wheel speed sensor
|
2. Front wheel speed sensor connector
|
Repair procedures
• |
Be careful not to damage the parts located under the vehicle
(floor under cover, fuel filter, fuel tank and canister) when
raising the vehicle using the lift.
(Refer to General Information - "Lift and Support Points")
|
|
1. |
Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
|
2. |

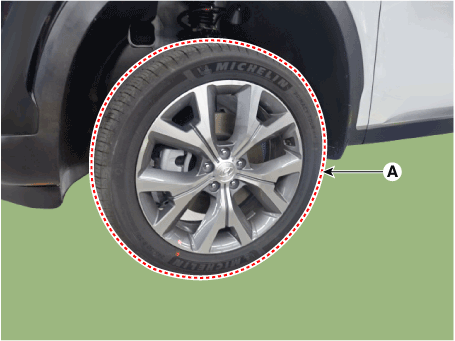

Remove the front wheel and tire (A) from front hub.
Tightening torque :
107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)
|
•
|
Be careful not to damage the hub bolts when removing
the front wheel and tire (A).
|
|
![Hyundai Palisade. Repair procedures](images/front_wheel_speed_sensor-709/390/hyundai_palisade__repair_procedures_2471.gif)
|
3. |
Remove the front wheel guard.
(Refer to Body - "Front Wheel Guard")
|
4. |

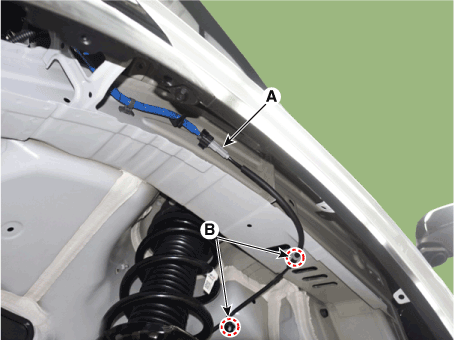

Disconnect the front wheel speed sensor connector (A) and then remove
the fixing clip (B).
![Hyundai Palisade. Repair procedures](images/front_wheel_speed_sensor-709/390/hyundai_palisade__repair_procedures_2472.gif)
|
5. |

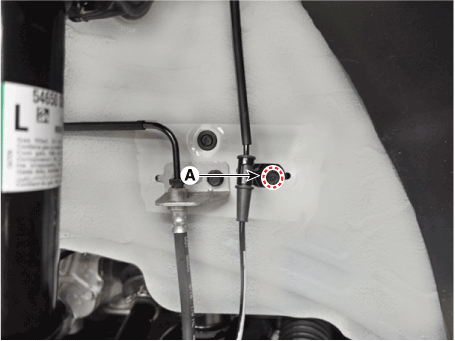

Remove the front wheel speed sensor cable braket bolt (A).
Tightening torque :
19.6 - 29.4N.m (2.0 - 3.0 kgf.m, 14.5 - 21.7 lb-ft)
|
![Hyundai Palisade. Repair procedures](images/front_wheel_speed_sensor-709/390/hyundai_palisade__repair_procedures_2473.gif)
|
6. |
Loosen the bolt and then disconnect the front wheel speed sensor (A).
Tightening torque :
6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb-ft)
|
![Hyundai Palisade. Repair procedures](images/front_wheel_speed_sensor-709/390/hyundai_palisade__repair_procedures_2474.gif)
|
1. |
To install, reverse the removal procedure.
|
1. |

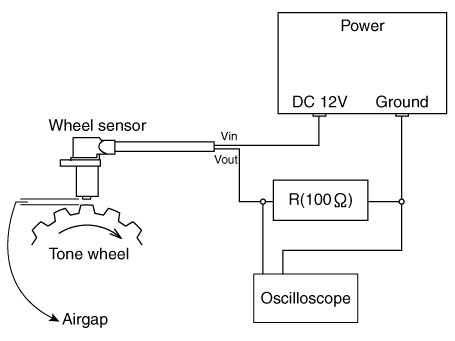

Measure the output voltage between the terminal of the wheel speed sensor
and the body ground.
•
|
In order to protect the wheel speed sensor, when measuring
output voltage, a 100Ω resister must be used as shown.
|
|
![Hyundai Palisade. Repair procedures](images/front_wheel_speed_sensor-709/390/hyundai_palisade__repair_procedures_2476.gif)
|
2. |

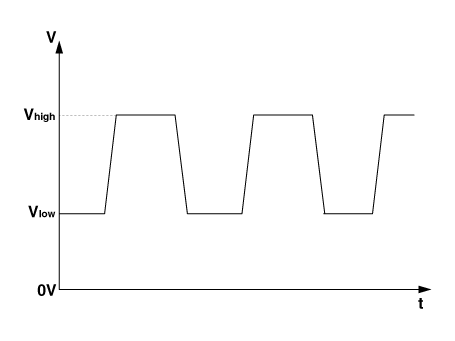

Compare the change of the output voltage of the wheel speed sensor to
the normal change of the output voltage as shown below.
![Hyundai Palisade. Repair procedures](images/front_wheel_speed_sensor-709/390/hyundai_palisade__repair_procedures_2477.gif)
V_low : 0.59V - 0.84V
V_high : 1.18V - 1.68V
Frequency range : 1 - 2,500 Hz
|
|
