Hyundai Palisade: Front Axle Assembly / Front Hub / Knuckle / Tone Wheel
Components and components location

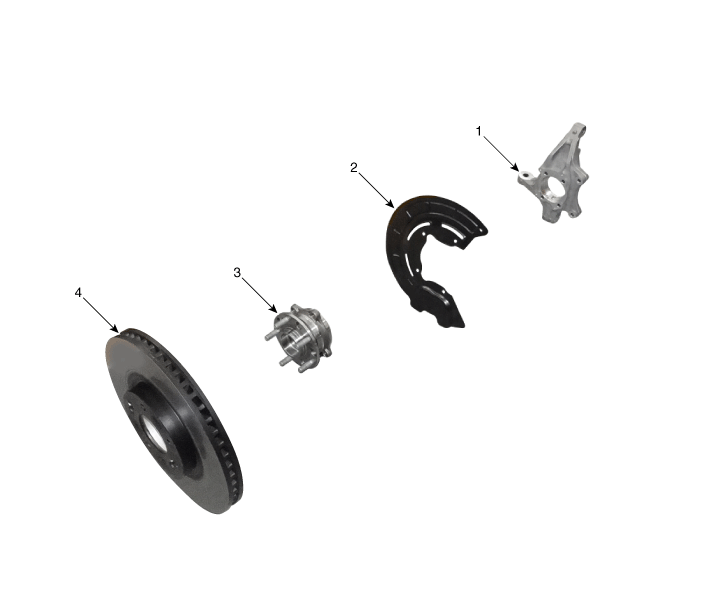

1. Knuckle
2. Dust cover
|
3. Hub
assembly
4. Brake disc
|
Repair procedures
1. |
Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
|
2. |

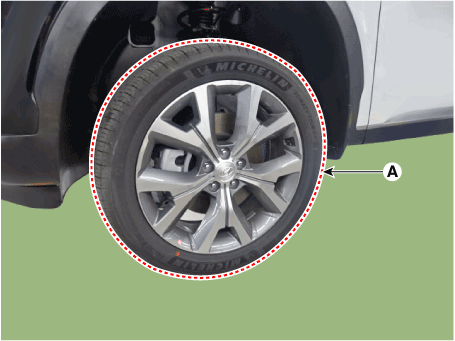

Remove the front wheel and tire (A) from the front hub.
Tightening torque :
107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)
|
•
|
Be careful not to damage the hub bolts when removing
the front wheel and tire (A).
|
|

|
3. |
Remove the front brake caliper.
(Refer to Brake System - "Front Disc Brake")
|
4. |

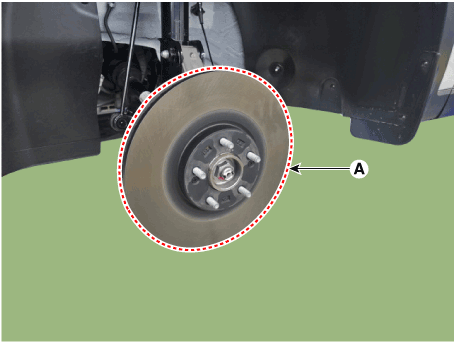

Loosen the screw and then remove the front disc (A).
Tightening torque :
4.9 - 5.9 N.m (0.5 - 0.6 kgf.m, 3.6 - 4.3 lb-ft)
|

|
5. |

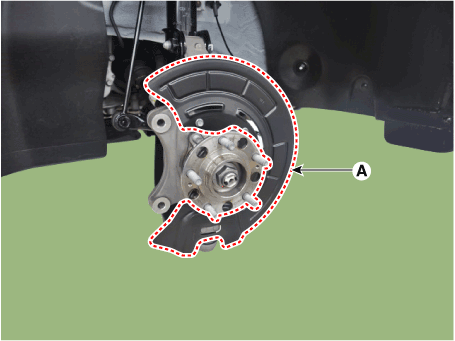

Remove the dust cover (A).
Tightening torque :
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)
|

|
6. |

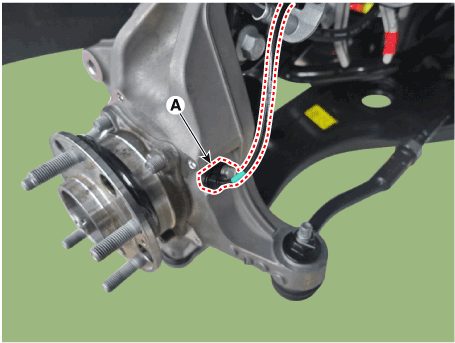

Loosen the bolt and then remove the wheel speed sensor (A).
Tightening torque :
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.5 - 8.7 lb-ft)
|

|
7. |

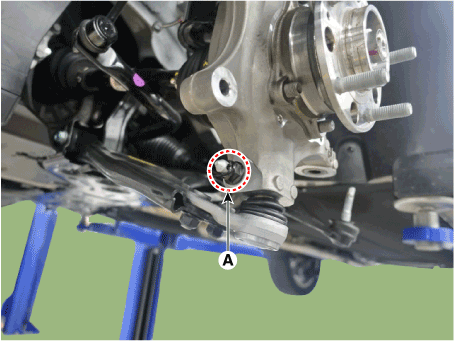

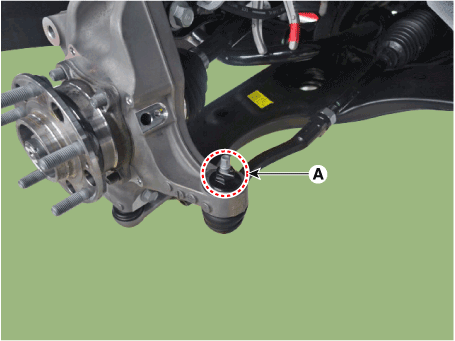

Remove the tie rod end ball joint.
(1) |
Remove the split pin and nut (A).
|
(2) |

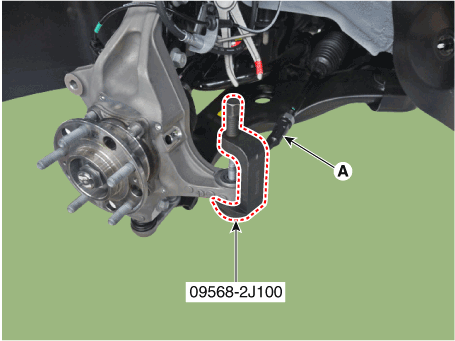

Using SST(09568-2J100), separate the ball joint (B) from the
knuckle.
Tightening torque :
78.5 - 88.3 N.m (8.0 - 9.0 kgf.m, 57.9 - 65.1 lb-ft)
|


|
|
8. |
Remove the split pin and nut (A).
Tightening torque:
98.0 - 117.6 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.7 lb-ft)
|

|
9. |

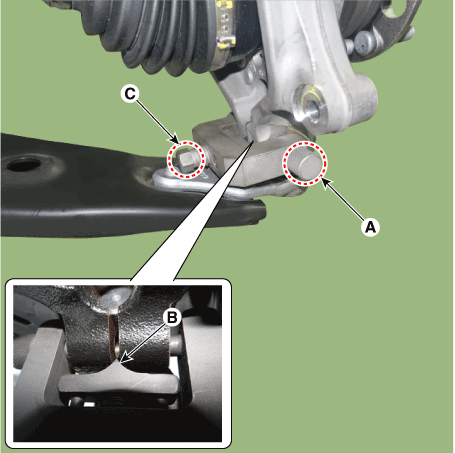

Remove the lower arm from the knuckle by using the SST (09568-4R100).
(1) |
Install the support bolt (A) from lower arm bolt hole.
|
(2) |
Install the support body (B) from front axle.
|
(3) |
Tighten the bolt (C).

|
|
10. |

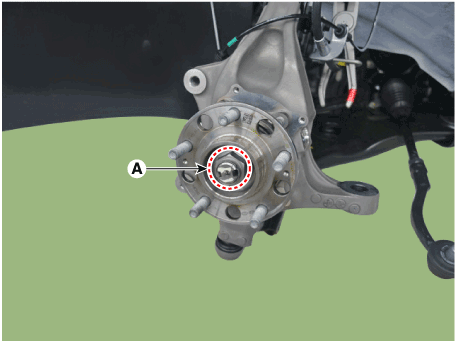

Loosen the driveshaft caulking nut (A).
Tightening torque :
294.2 - 313.8 N.m (30.0 - 32.0 kgf.m, 217.0 - 231.5 lb-ft)
|

•
|
The driveshaft lock nut (A) should be replaced with
new ones.
|
•
|

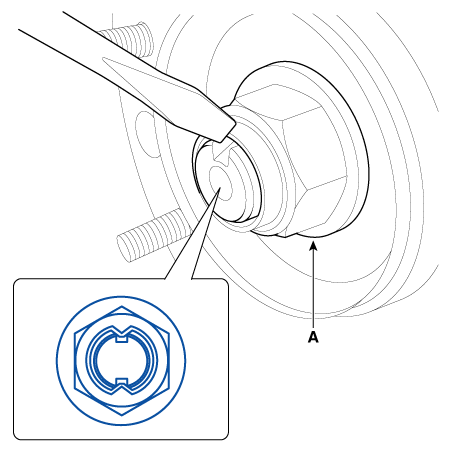

After installation driveshaft lock nut, stake the lock
nut using a chisel and hammer as shown in the illustration
below.
Caulking depth : 1.5 mm (0.591 in.)
|

|
|
|
11. |
Remove the hub bearing (A) from the front knuckle.
Tightening torque :
117.7 - 137.3 N.m (12.0 - 14.0 kgf.m, 86.8 - 101.3 lb-ft)
|

|
12. |

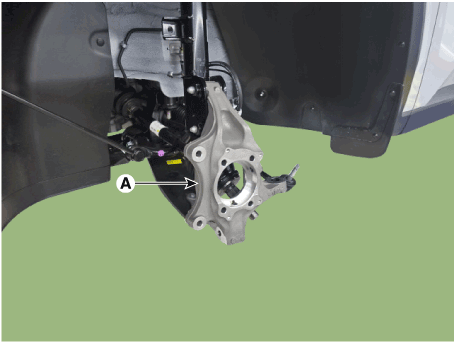

Loosen the strut mounting bolts, nuts and then remove the knuckle assembly
(A).
Tightening torque :
196.1- 215.7 N.m (20.0 - 22.0 kgf.m, 144.7 - 159.1 lb-ft)
|

|
1. |
Check the hub for cracks and the splines for wear.
|
2. |
Check the brake disc for scoring and damage.
|
3. |
Check the knuckle for cracks.
|
4. |
Check the bearing for cracks or damage.
|
1. |
Install in the reverse order of removal.
|
2. |
Check the alignment.
(Refer to Suspension System - "Alingment")
|
