Hyundai Palisade: Front Door / Front Door Trim

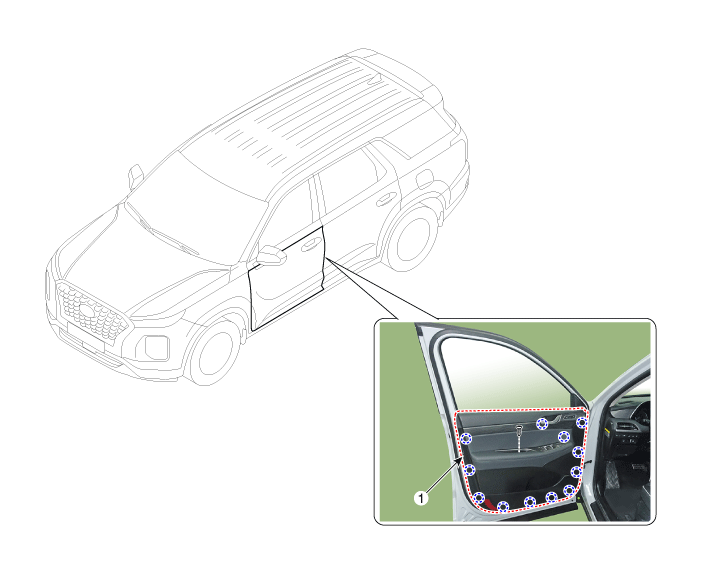

Components and components location
![Hyundai Palisade. Components and components location](images/front_door_trim-747/390/hyundai_palisade__components_and_components_location_2628.gif)
Repair procedures
• |
Put on gloves to prevent hand injuries.
|
|
• |
When removing with a flat-tip screwdriver or remover, wrap protective
tape around the tools to prevent damage to components.
|
• |
Be careful not to scratch the door trim and other parts.
|
|
1. |

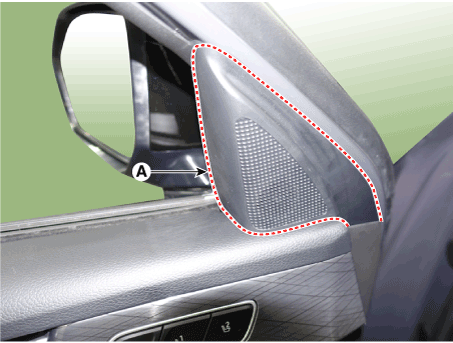

Remove the front door quadrant cover (A).
![Hyundai Palisade. Repair procedures](images/front_door_trim-747/390/hyundai_palisade__repair_procedures_2631.gif)
|
2. |

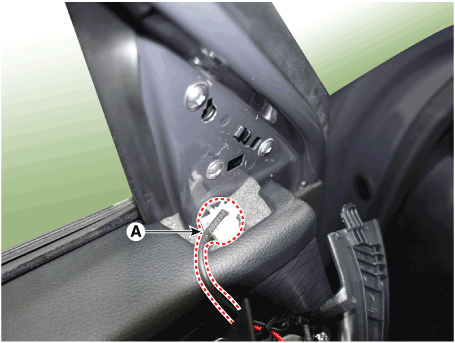

Separate the front door tweeter speaker connector (A).
![Hyundai Palisade. Repair procedures](images/front_door_trim-747/390/hyundai_palisade__repair_procedures_2632.gif)
|
3. |

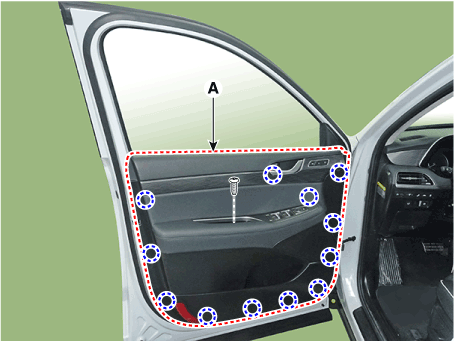

Loosen the mounting screw and remove the lower part of the front door
trim (A) using a flat-tip screwdriver.
![Hyundai Palisade. Repair procedures](images/front_door_trim-747/390/hyundai_palisade__repair_procedures_2633.gif)
|
4. |

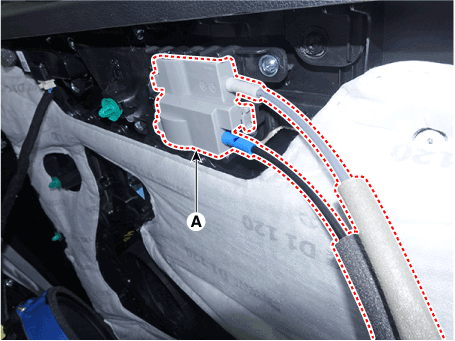

Remove the front door inside handle cage (A).
![Hyundai Palisade. Repair procedures](images/front_door_trim-747/390/hyundai_palisade__repair_procedures_2634.gif)
|
5. |

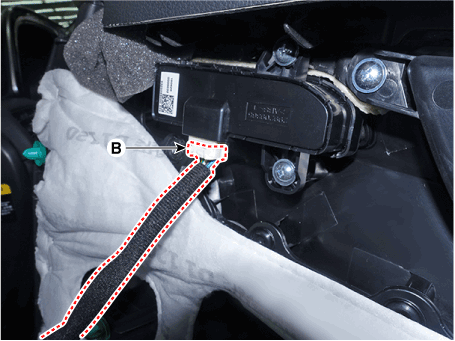

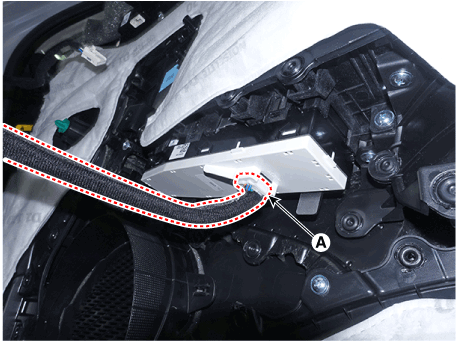

Disconnect the front door window connector (A) , mirror switch connector
(B).
![Hyundai Palisade. Repair procedures](images/front_door_trim-747/390/hyundai_palisade__repair_procedures_2635.gif)
![Hyundai Palisade. Repair procedures](images/front_door_trim-747/390/hyundai_palisade__repair_procedures_2636.gif)
|
6. |
To install, reverse removal procedure.
•
|
Make sure the connector is connected properly.
|
•
|
Replace any damaged clips (or pin-type retainers).
|
•
|
Make sure the glass is operated properly.
|
|
|
