Hyundai Palisade: Air conditioning System / Description and operation

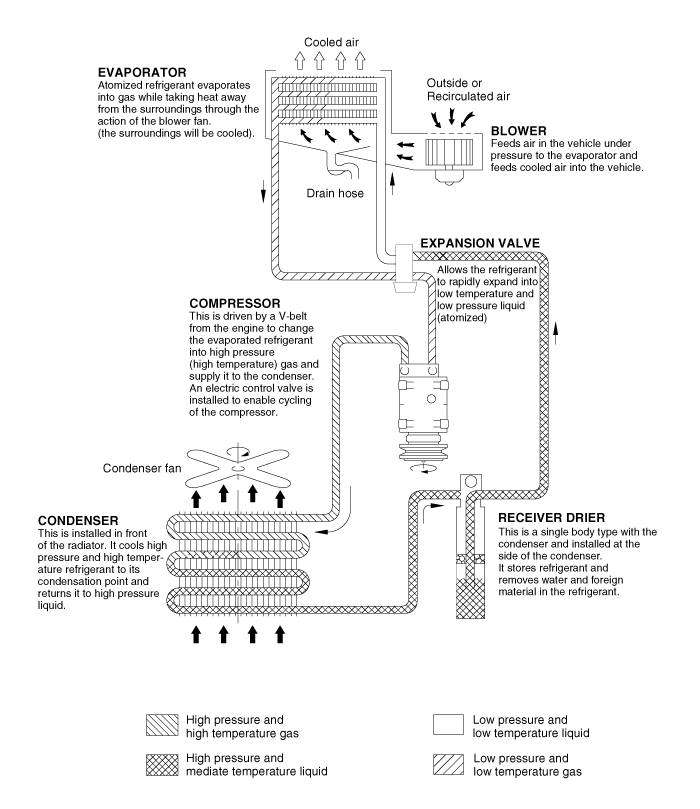

![Hyundai Palisade. Description and operation](images/description_and_operation-1039/390/hyundai_palisade__description_and_operation_3910.gif)
Instructions (R-134a)
When Handling Refrigerant
1.
R-134a liquid refrigerant is highly volatile. A drop on the skin of
your hand could result in localized frostbite...
Refrigerant System Service
Basics (R-134a)
Refrigerant Recovery
Use only service equipment that is U.L-listed and is certified to meet the requirements
of SAE J2210 to remove HFC-134a(R-134a) from the air conditioning system...
Other information:
Components and components location
Components
1. Remote control switch (Audio
swtich)
2. Remote control switch (Cruise
control switch)
Schematic diagrams
Circuit Diagram
Repair procedures
Removal
1...
Components and components location
Component
Connector Pin Function
Connector
PIN No
Pin Function
Connector
PIN No
Pin Function
A
1
Battery
A
17
IGN2
2
ISG B+
18
IGN1
3
ILL+ (TAIL)
19
Blower Motor (+)
4
Sensor Ground REF (+5V)
20
-
5
Mode Control Actuator Feedback
21
Mosfet (DRAIN F/B)
6
Temperature Actuator Feedback
22
Mosfet (GATE)
7
Mode Control Actuator (Vent)
23
Heater Switch _ LH
8
Mode Control Actuator (Defrost)
24
Indicator (HIGH) _ LH
9
Temperature Control Actuator (Cool)
25
Indicator (MID) _ LH
10
Temperature Control Actuator (Warm)
26
Indicator (LOW) _ LH
11
Detent out (-)
27
Heater Switch _ RH
12
K - Line
28
Indicator (HIGH) _ RH
13
LIN Left
29
Indicator (MID) _ RH
14
Lin Right
30
Indicator (LOW) _ RH
15
-
31
Sensor Ground
16
ILL - (RHEO)
32
Ground
Repair procedures
Replacement
•
When removing with a flat-tip screwdriver or remover, wrap protective
tape around the tools to prevent damage to components...
