Hyundai Palisade: Gauges and Meters / Speedometer

Hyundai Palisade (LX2) 2020-2025 Owner's Manual / Convenient Features of Your Vehicle / Instrument cluster / Gauges and Meters / Speedometer

Hyundai Palisade. Speedometer

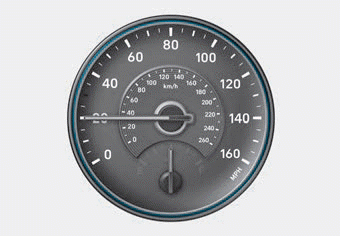

■ Type A and B

Hyundai Palisade. Speedometer

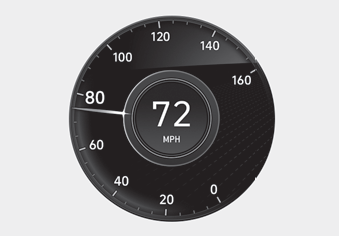

■ Type C

The speedometer indicates the speed of the vehicle and is calibrated in miles per hour (MPH) and/or kilometers per hour (km/h).
