Hyundai Palisade: Sunroof / Resetting the Sunroof

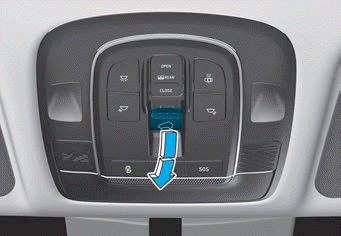

■ Front
■ Rear
The sunroof may need to be reset if the following conditions occur:
- The battery is discharged or disconnected or the sunroof fuse has been replaced or disconnected
- The sunroof control lever is not operating correctly
To reset the sunroof, perform the following steps:
1. Turn the engine on.

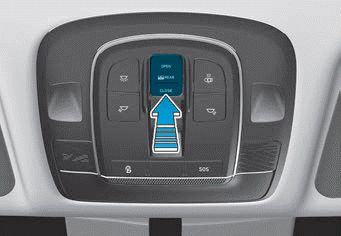

2. Push the control lever forward. The sunroof will close completely depending on the condition of the sunroof.
3. Release the control lever until the sunroof does not move.
4. Push the control lever forward about 10 seconds.
- When the sunroof is in the close position :
The glass will slightly move up and down.
Do not release the lever until the operation is completed.
If you release the lever during operation, try again from step 2.
5. Within 3 seconds, push the control lever forward until the sunroof operates as follows:
Slide Open → Slide Close.
Do not release the lever until the operation is completed.
If you release the lever during operation, try again from step 2.
6. Release the sunroof control lever after all operation has completed. The sunroof system has been reset.
Information
If you do not reset the sunroof, it may not work properly.
