Repair procedures

Removal

1.	Disconnect the negative (-) battery terminal.

2.	Remove the rear combination lamp cover (A) with a flat-tip screwdriver.

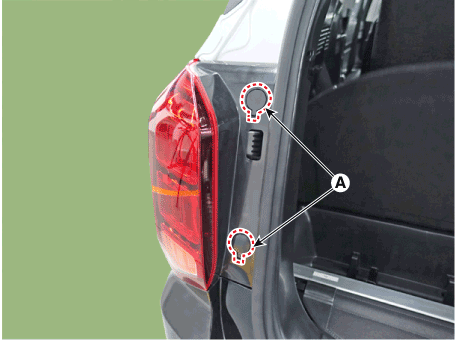

3.	Remove the rear combination lamp mounting cap (A).

4.	Loosen the mounting bolts then remove the outside rear combination lamp (A).

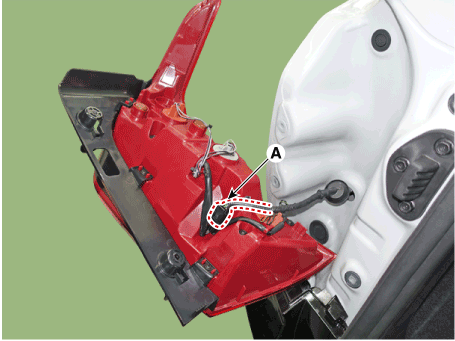

5.	Disconnect the rear combination lamp connector (A).

Installation

1.	Install the rear combination lamp

2.	Connect the negative (-) battery terminal.
