Hyundai Palisade: Power Liftgate / Opening the liftgate
The power liftgate will open automatically
by doing one of the following:

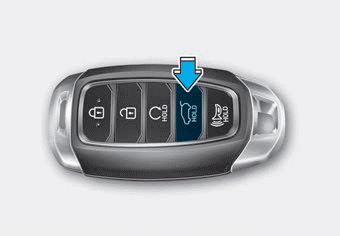

Smart key liftgate unlock button
Press and hold the liftgate unlock
button on the smart key.

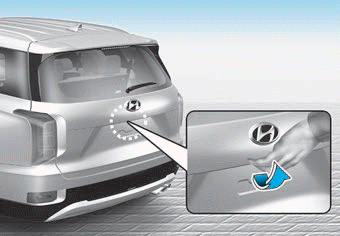

Power liftgate handle switch
Press the liftgate outside handle
switch while having the smart key
with you.

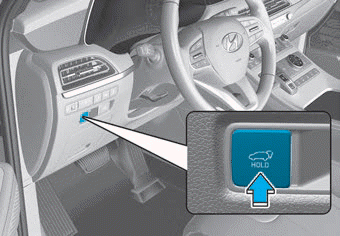

Power liftgate button
Press the power liftgate button for
approximately one second.
In order to suddenly stop the movement
of the liftgate while it is operating,
quickly press the power liftgate
button.
Power liftgate button
Power liftgate setting
When the ignition switch is in the ON
position and the shift button is in P
(Park), the power liftgate can be
opened by using the console button
on the dash...
The power liftgate will close automatically
by doing one of the following:
Smart key liftgate unlock button
Press and hold the liftgate unlock
button on the smart key when the liftgate
is opened...
Other information:
■ Front camera
■ Rear radar
Front camera
The front camera function as a sensor
detecting the lane. If the sensor is
covered with snow, rain or foreign
substance, the system may temporarily
be canceled and not work
properly. Always keep the sensor
clean...
Special Service Tools
Tool Name / Number
Illustration
Description
Fuel Pressure Gauge
09353-24100
Used for measuring the pressure in fuel line
Fuel Pressure Gauge Adapter
0K353-D4100
Used for connecting between high pressure fuel pump and low pressure fuel
feed tube to measure the pressure in fuel line
※SST 09353-C1000 also can be used
Heated Oxygen Sensor Socket Wrench
09392-1Y100 (19 mm)
Removal and installation of the heated oxygen sensor
※ SST No...
