Hyundai Palisade (LX2): Rear Seat / Rear Seat Assembly

Components and components location

Component Location

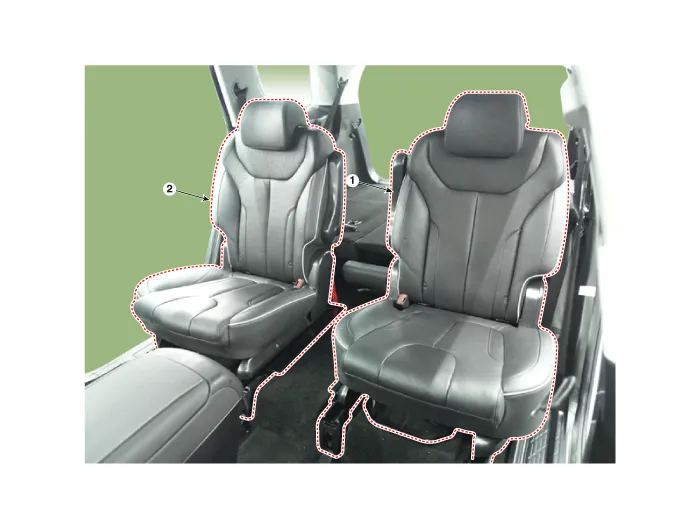

[Second-row seat assembly for 7 passengers]

Hyundai Palisade. Components and components location

1. Second-row seat assembly [LH]
2. Second-row seat assembly [RH]

[Second-row seat assembly for 8 passengers]

Hyundai Palisade. Components and components location

1. Second-row seat assembly [LH]
2. Second-row seat assembly [RH]

[Third-row seat assembly]

Hyundai Palisade. Components and components location

1. Second-row seat assembly [LH]
2. Second-row seat assembly [RH]

    Components and components location Component Location [Second-row seat assembly for 7 passengers] 1. Second-row seat back assembly [Second-row seat assembly for 8 passengers] 1.
