| Component Location |

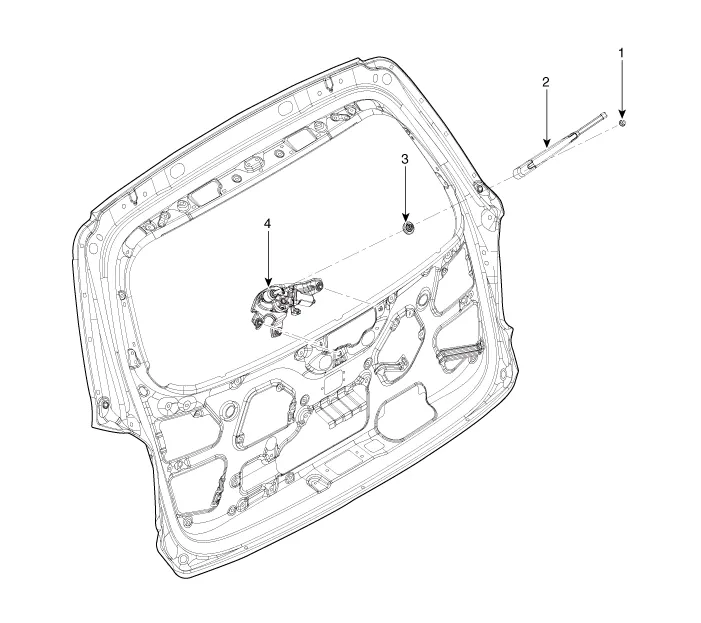

| 1. Rear wiper arm nut 2. Rear wiper arm & blade |
3. Rear wiper grommet 4. Rear wiper motor assembly |
Repair procedures Inspection Rear Wiper Motor 1. Remove the connector from the rear wiper motor. 2.
Repair procedures Oil Specification 1. The R-134a or R-1234yf system requires synthetic (PAG) compressor oil whereas the R-12 system requires mineral compressor oil. The two oils must never be mixed. 2.
Inspection 1. Turn the ignition switch ON. 2. Manually operate the control switch and measure the voltage of the blower motor. 3. Select the control switch to raise the voltage until it reaches high speed.
