Hyundai Palisade (LX2): Horn / Components and components location

Component Location

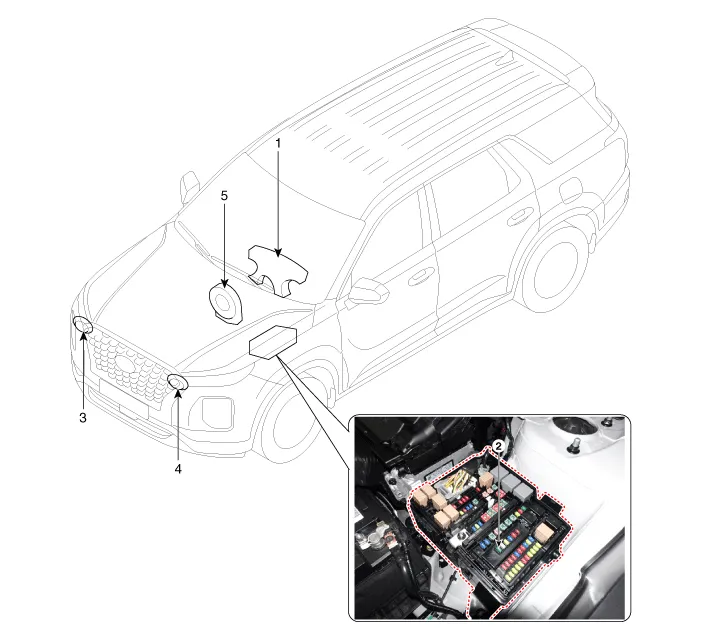

Hyundai Palisade. Components and components location

1. Horn switch
2. Horn relay (Engine room compartment)
3. Horn (Low pitch)
4. Horn (High pitch)
5. Clock spring

    Removal 1. Remove the front bumper cover. (Refer to Body - "Front Bumper Cover") 2. Remove the bolts and disconnect the horn connectors (C), then remove the high pitch horn (B) and low pitch horn (A).
