Hyundai Palisade (LX2): Fuel Delivery System / Components and components location

Hyundai Palisade (LX2) 2020-2026 Service Manual / Engine Control/Fuel System / Fuel Delivery System / Components and components location

Components Location

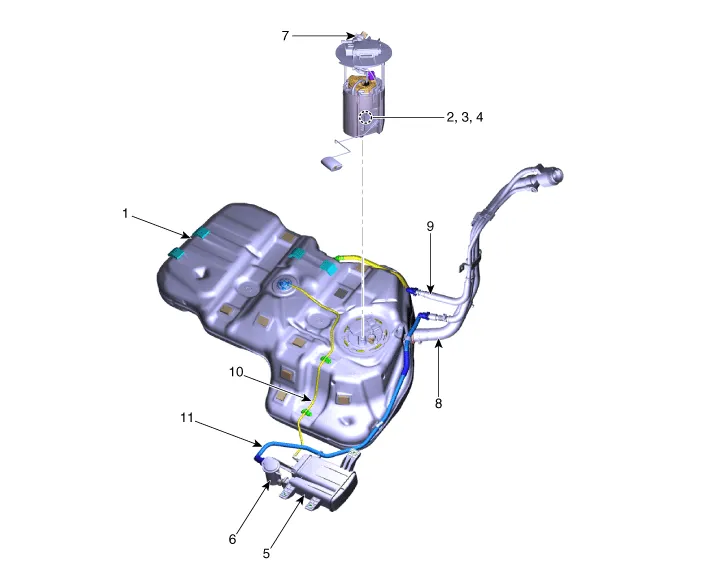

Fuel Tank & Filter-Neck Assembly

Hyundai Palisade. Components and components location

1. Fuel tank
2. Fuel pump
3. Fuel filter
4. Fuel pressure regulator
5. Canister
6. Fuel tank air filter
 7. Fuel Pressure sensor
8. Fuel Filler hose
9. Leveling hose
10. Ventilation hose
11. Vapor tube

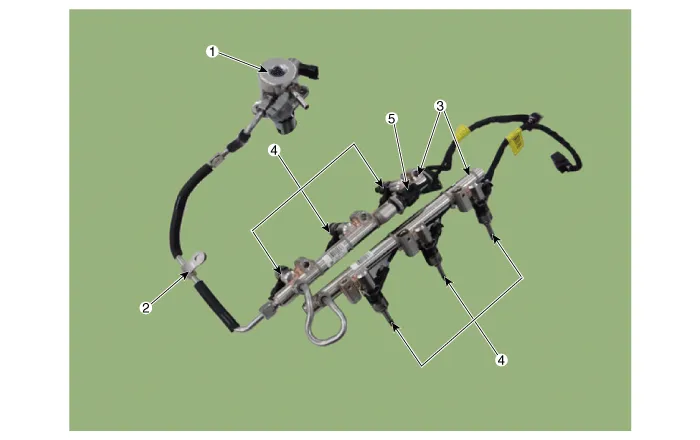

High Pressure Fuel Line

Hyundai Palisade. Components and components location

1. High Pressure Fuel Pump
2. High Pressure Fuel Pipe
3. Delivery Pipe
 4. Injector
5. Rail Pressure Sensor (RPS)

Hyundai Palisade. Components and components location
•
In case of removing the high pressure fuel pump, high pressure fuel pipe, delivery pipe, and injector, there may be injury caused by leakage of the high pressure fuel. So don’t do any repair work right after engine stops.

    Fuel Pressure Test (Low pressure system) 1. Release the residual pressure in fuel line. (Refer to Fuel Delivery System - "Release Residual Pressure in Fuel Line")    • When removing the fuel pump fuse, a Diagnostic Trouble Code (DTC) may occur.
