Hyundai Palisade (LX2): Auto Lighting Control System / Components and components location
Hyundai Palisade (LX2) 2020-2026 Service Manual / Body Electrical System / Auto Lighting Control System / Components and components location

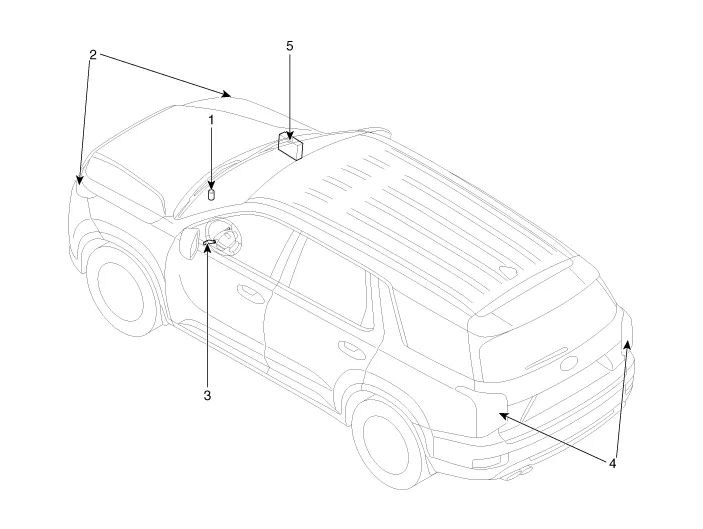

| Component Location |
| 1. Auto light sensor 2. Head lamps 3. Lighting switch (Auto) |
4. Tail lamps 5. IBU (Integrated Body Control Unit) |
Specifications Items Specifications Rated voltage DC +5V Load Max.
Circuit Diagram
