General information

Identification Number

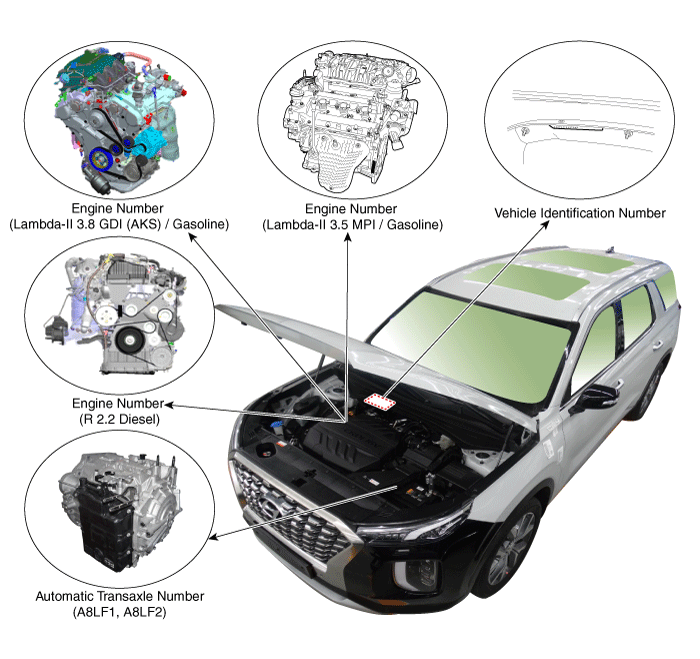

Hyundai Palisade. Identification Numbers

Identification Number Description
Vehicle Identification Number

Hyundai Palisade. Identification Numbers

1.
World Manufacturer Identifier (WMI)
- KMF : Commercial vehicle (Van)
- KMH : Passenger vehicle or MPV (Multipurpose Passenger Vehicle) / SUV (Sports Utility Vehicle) /RV (Recreational Vehicle)
- KMJ : Van
2.
Vehicle line
- R : LX2
3.
Model & Series
- S : Low grade (L)
- T : Middle-Low grade (GL)
- U : Middle grade (GLS, JSL, TAX)
- V : Middle-High grade (HGS)
- W : High grade (TOP)
4.
Body / Cabin type, Gross Vehicle Weight Rating
KMH
- 1 : Limousine
- 2 : Sedan - 2 door
- 3 : Sedan - 3 door
- 4 : Sedan - 4 door
- 5 : Sedan - 5 door
- 6 : Coupe
- 7 : Convertible
- 8 : Wagon
- 9 : Commercial Van
- 0 : Pick-Up
KMJ
- 1 : Box
- 2 : Bonnet
- 3 : Semi-Bonnet
KM8
- 1 : Wagon 4 x 2 Class-A
- 2 : Wagon 4 x 2 Class-B
- 3 : Wagon 4 x 2 Class-C
- 4 : Wagon 4 x 2 Class-D
- 5 : Wagon 4 x 2 Class-E
- 6 : Wagon 4x2 Class-F
- 7 : Wagon 4 x 2 Class-G
- A : Wagon 4 x 4 Class-A
- B : Wagon 4 x 4 Class-B
- C : Wagon 4 x 4 Class-C
- D : Wagon 4 x 4 Class-D
- E : Wagon 4 x 4 Class-E
- F : Wagon 4 x 4 Class-F
- G : Wagon 4 x 4 Class-G
5.
Restraint system, Brake system
KMH, KM8
Except U.S.A, Canada, Mexico
- 0 : Both side - None
- 1 : Both side - Active belt
- 2 : Both side - Passive belt
(For U.S.A, Canada, Mexico)
KMJ
Except U.S.A, Canada, Mexico
- 7 : Hydraulic brake system
- 8 : Pneumatic brake system
- 9 : Mixed brake system
For U.S.A, Canada, Mexico
- X : Hydraulic brake system
- Y : Pneumatic brake system
- Z : Mixed brake system
KMF
Except U.S.A, Canada, Mexico
- 7 : Hydraulic brake system
- 8 : Pneumatic brake system
- 9 : Mixed brake system
(For U.S.A, Canada, Mexico)
6.
Engine type
- E : Gasoline engine 3.8 (Lambda-II GDI AKS)
- 5 : Gasoline engine 3.5 (Lambda-II MPI)
- B : Disel engine 2.2 (R TCI)
7.
Check digit or Driver’s side & Transmission
Except U.S.A, Canada, Mexico, Gulf Cooperation Council, China, Yemen
- A : LHD & MT
- B : LHD & AT
- C : LHD & MT+Transfer
- D : LHD & AT+Transfer
- E : LHD & CVT
- L : RHD & MT
- M : RHD & AT
- N : RHD & MT+Transfer
- S : RHD & AT+Transfer
- T : RHD & CVT
(For U.S.A, Canada, Mexico, Gulf Cooperation Council, China, Yemen)
- Check digit : 0 - 9, x
8.
Model year
- K : 2019, L : 2020, M : 2021, N : 2022 ...
9.
Plant of production
- A : Asan (Korea)
- C : Cheonju (Korea)
- H : Alabama (U.S.A)
- U : Ulsan (Korea)
- R : Saint Petersburg (Russia)
10.
Vehicle production sequence number
- 000001 - 999999

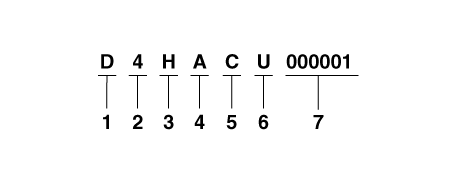

Engine Number

Hyundai Palisade. Identification Numbers

1.
Engine fuel
- G : Gasoline
- D : Diesel
2.
Engine range
- 4 : 4 cycle 4 cylinder
- 6 : 4 cycle 6 cylinder
3.
Engine development order and capacity
- D : Lambda engine (Gasoline)
- H : R engine (Diesel)
4.
Engine Capacity
- B : 2199cc (R engine)
- N : 3778cc (Lambda-II GDI)
- C : 3470cc (Lambda-II MPI)
5.
Production year
- K : 2019, L : 2020, M : 2021, N : 2022 ...
6.
Plant of production
- A : Asan (Korea)
- B : Beijing (China)
- H : Hwasung (Korea)
- K : Montgomery (U.S.A)
- M : Chennai (India)
- P : Poseung (Korea)
- S : Sohari (Korea)
- T : Izmit (Turkey)
- U : Ulsan (Korea)
- W : Shandong (China)
- Z : Zilina (Slovakia)
- 1 : Yancheng (China)
7.
Engine production sequence number
- 000001 - 999999

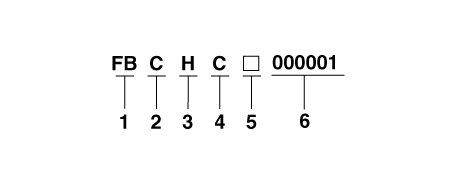

Transaxle Number
Automatic (A8LF1, A8LF2)

Hyundai Palisade. Identification Numbers

1.
Model
- LA : A8LF1
- MA : A8LF2
2.
Production year
- K : 2019, L : 2020, M : 2021, N : 2022 ...
3.
Gear ratio
- B : 3.320
- H : 3.648
- U : 3.510
- W : 3.913
4.
Detailed classification
- A : Lambda-II 3.5 MPI 4WD
- B : Lambda-II 3.5 MPI 2WD, R 2.2 2WD / 4WD
- M : R 2.0 4WD
5.
Plant classification
- A : PTA
- C : PTC - Plant 1
- D : PTC - Plant 2
- H : Hwasung (Korea)
- M : Mexico
- U : Ulsan - Plant 1 (Korea)
- S : Ulsan - Plant 2 (Korea)
- 2 : Powertech - Plant 2 (Korea)
- 4 : Powertech - Plant 4 (Korea)
6.
Transaxle production sequence number
- 000001 - 999999
Paint Code
Code
Color
R2F
Rain Forest
W7B
Sierra Burgundy
S7S
Lagoon Silver
P7V
Steel Graphite
RB5
Timeless Black
RN7
Taiga Brown
UB7
Moonlight Cloud
WC9
White Cream
R2T
Shimmering Silver
