Hyundai Palisade (LX2): Inside Rearview Mirror / Electrochromatic Mirror (ECM)
Some vehicles come equipped with an electrochromic mirror that helps control glare while driving at night or under low light driving conditions.
When the engine is running, the glare is automatically controlled by the sensor mounted in the rearview mirror. The sensor detects the light level around the vehicle, and automatically adjusts to control the headlamp glare from vehicles behind you.
Whenever the shift button is placed in R (Reverse), the mirror will automatically go to the brightest setting in order to improve the driver’s view behind the vehicle.
[A] : Indicator
NOTICE
When cleaning the mirror, use a paper towel or similar material dampened with glass cleaner. Do not spray glass cleaner directly on the mirror as that may cause the liquid cleaner to enter the mirror housing.
[A]: Day, [B]: Night Make this adjustment before you start driving and while the day/night lever is in the day position. Pull the day/night lever towards you to reduce glare from the headlights of the vehicles behind you during night driving.

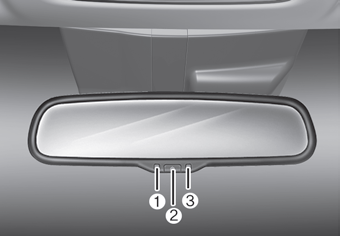

To operate the electric rearview mirror Press the I button (1) to turn the automatic- dimming function on. The mirror indicator light will illuminate.
