Hyundai Palisade (LX2) 2020-2024 Service Manual / Body (Interior and Exterior) / Rear Door / Components and components location

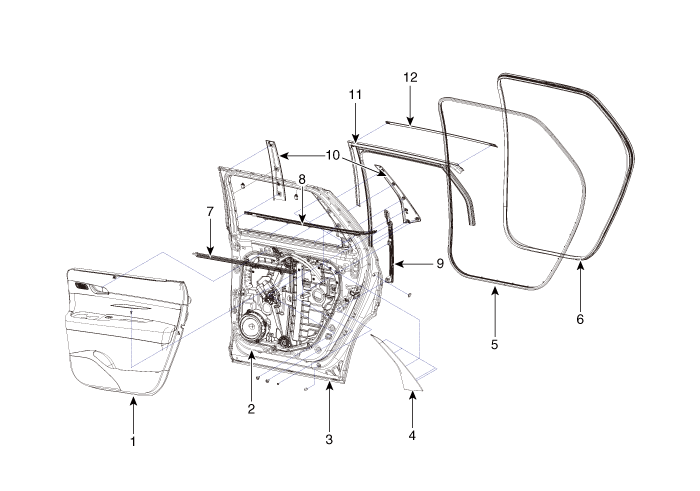

Components

Hyundai Palisade. Components and components location

1. Rear door trim
2. Rear door module
3. Rear door panel
4. Rear door delta inner cover
5. Rear door door side weatherstrip
6. Rear door body side weatherstrip

7. Rear door belt inside weatherstrip
8. Rear door belt outside weatherstrip
9. Rear door lower channel
10. Rear door frame garnish assembly
11. Rear door window glass run assembly
12. Rear door frame molding.
