Components

Hyundai Palisade. Components and components location

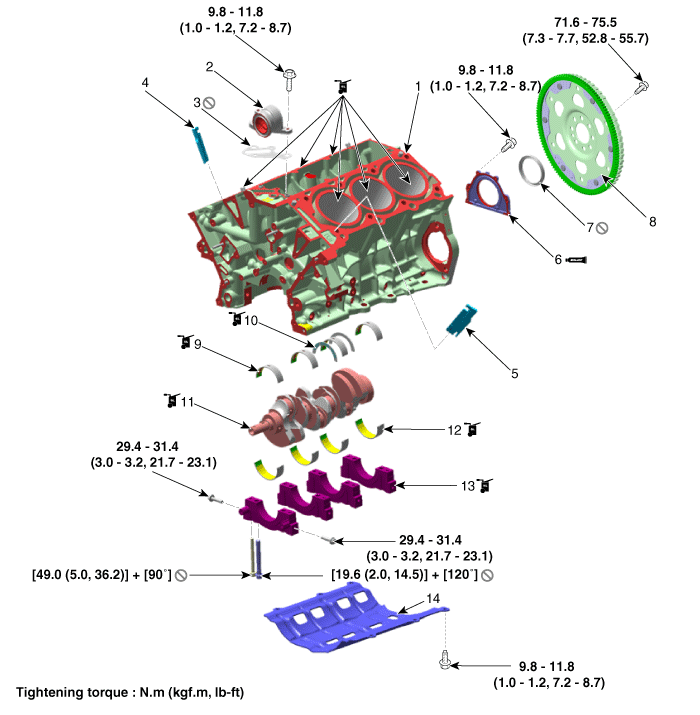

1. Cylinder block
2. Oil cover
3. Oil cover gasket
4. Water jacket separator #1
5. Water jacket separator #2
6. Rear oil seal case
7. Rear oil seal
8. Drive plate
9. Crankshaft upper bearing
10. Thrust bearing
11. Crankshaft
12. Crankshaft lower bearing
13. Main bearing cap
14. Baffle plate

Hyundai Palisade. Components and components location

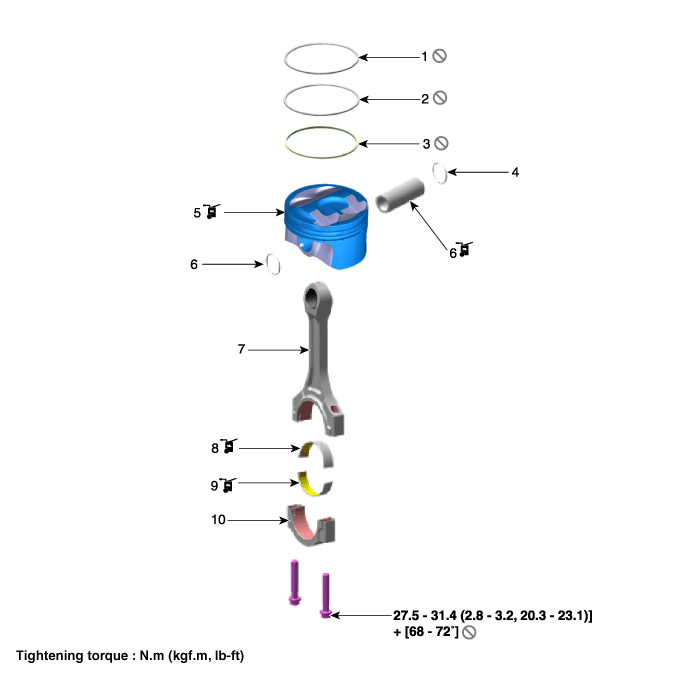

1. Piston ring (#1)
2. Piston ring (#2)
3. Oil ring
4. Snap ring
5. Piston
6. Piston pin
7. Connecting rod
8. Connecting rod upper bearing
9. Connecting rod lower bearing
10. Connecting rod bearing cap
