Hyundai Palisade (LX2): Tailgate / Tailgate Lift

Hyundai Palisade (LX2) 2020-2026 Service Manual / Body (Interior and Exterior) / Tailgate / Tailgate Lift

Repair procedures

Replacement
Hyundai Palisade. Repair procedures
•
Take care to not let the tailgate fall on you as the lifts are removed. Have a helper hold the tailgate open, or use a secure method to hold it open.
1.

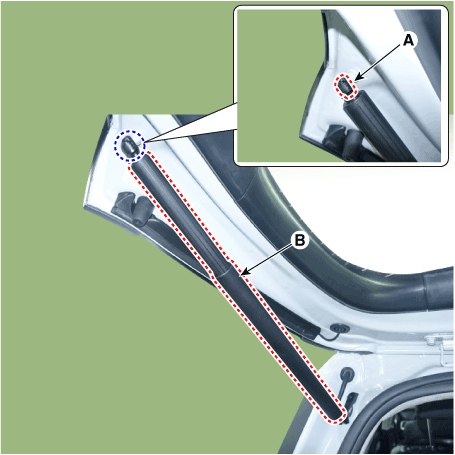

Using a screwdriver, lift up slightly the socket clips (A) of both ends on the lifter (B), and then remove the lifter from the bracket.

Hyundai Palisade. Repair procedures
2.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
•
Make sure the tailgate locks and opens properly and locks securely.
