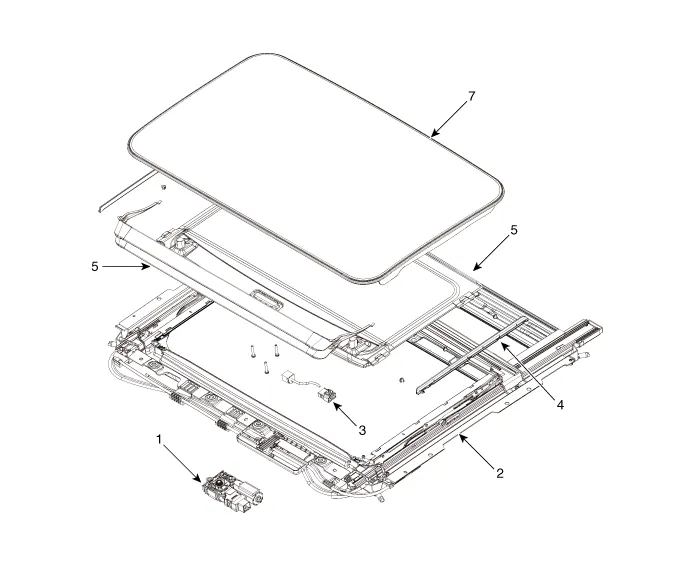

Components

Hyundai Palisade. Components and components location

1. Motor assembly
2. Mechanism
3. Front wire harness
4. Mechanism cover


 5. Deflector
6. Sunshade panel assembly
7. Glass panel assembly

    Adjustment Inspect Glass Alignment 1. Inspect the alignment of the front glass weatherstrip (B) and roof panel (A) and adjust it if needed.
