Hyundai Palisade (LX2): Convenient Features of Your Vehicle / Interior Lights
WARNING
Do not use the interior lights when driving in the dark. The interior lights may obscure your view and cause an accident.
NOTICE
Do not use the interior lights for extended periods when the vehicle is turned off or the battery will discharge.

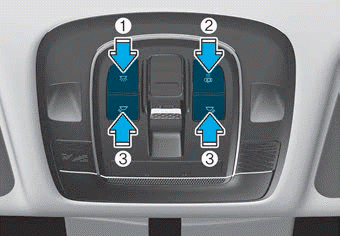

- Interior lamp AUTO cut, Front lamps
- Rear lamp, Luggage compartment lamp
- Vanity mirror lamp, Glove box lamp
- Puddle lamp
- Welcome System
Battery saver function The purpose of this feature is to help prevent the battery from being discharged. The system automatically turns off the parking lamp when the driver turns the vehicle off and opens the driver-side door.
Interior lamp AUTO cut The interior lamps will automatically go off approximately 20 minutes after the engine is turned off and the doors are closed.
